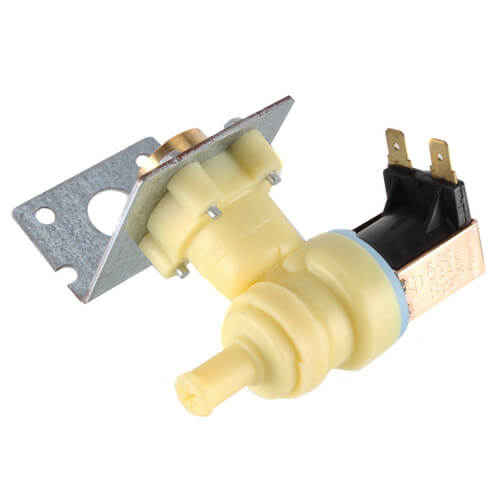

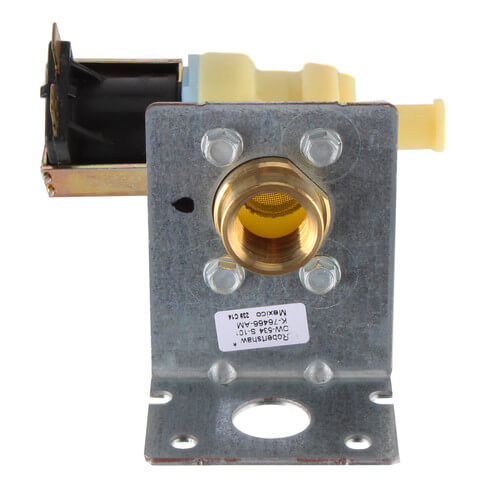

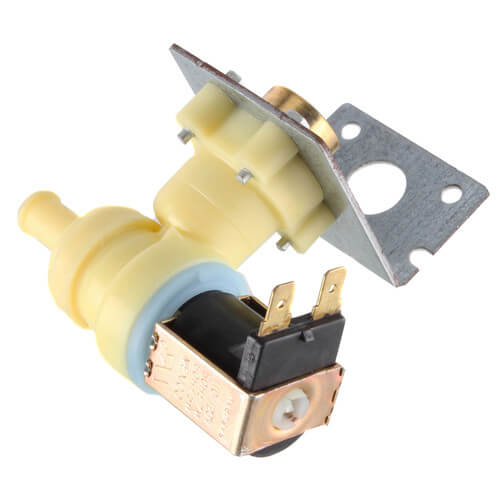

S-101 Residential Dish Washer Water Valve, 1.13 GPM (120V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
K-76466-AM has been discontinued
Discontinued September 3, 2024
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
S-101 Residential Dish Washer Water Valve, 1.13 GPM (120V)
VIEW REPLACEMENTProduct Highlights
–
120v
3/8"
3/8"
120 MAX PSI
20 PSI
Polypropylene
Description
–
The Robertshaw S-101 Water Valve Series is a single solenoid valve for dishwashing machines and coffee brewers.
Features:
Features:
- Pilot-operated diaphragm provides high flow capacity with minimum power requirements
- Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
- Bodies are made of polypro to withstand a variety of harsh water conditions
- Suitable for applications using water at temperatures up to 160°F (71°C)
Specs
–
| Application: | Dishwasher |
|---|---|
| Voltage: | 120v |
| Outlet Size: | 3/8" |
| Inlet Size: | 3/8" |
| Max Pressure (PSI): | 120 |
| Min Pressure (PSI): | 20 |
| Material: | Polypropylene |
| Flow Rate (GPM): | 1.13 |
| Inlet Type: | NPT |
| Outlet Type: | ID Hose |
