S-86 Residential Ice Machine Water Valve (120V)
Hover image to zoom

S-86 Residential Ice Machine Water Valve (120V)

SKU:
K-78186-AM
Rating:
(0)
Q&A:
(0)
S-86 Residential Ice Machine Water Valve (120V)
Hover image to zoom
$30.49 each
In Stock
In Stock
Get 5 Wed, Apr 5
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
120v
Outlet Size icon
7/16", 1/2"
Inlet Size icon
1/4"
Max Pressure (PSI) icon
120 PSI
Min Pressure (PSI) icon
20 PSI
Material icon
Polypropylene

Description

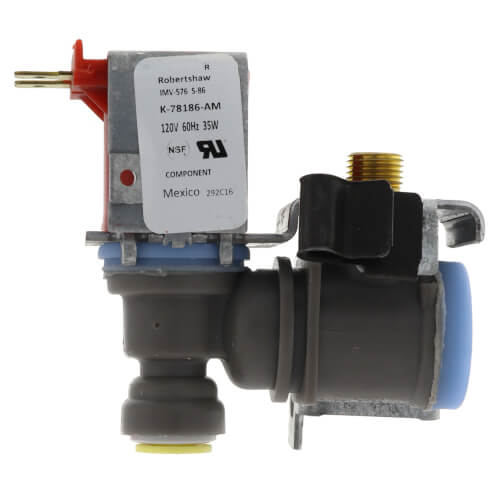

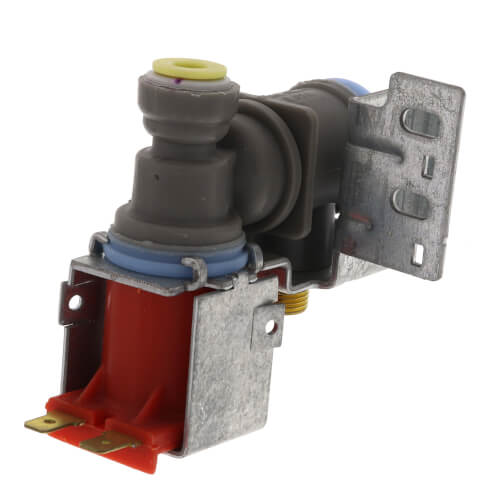

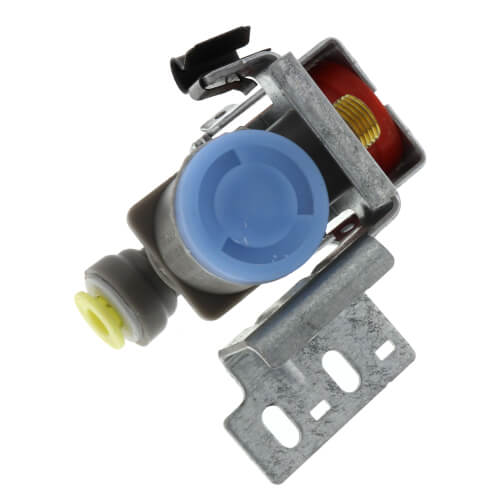

The Robertshaw® S-86 dual Water Valve Series is an automatic icemaker valve for residential refrigerator icemakers. Features an inlet fitting which connects directly to 1/4" (6.35mm) tubing without an additional adaptor. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Features:
  • Direct acting armature provides high flow capacity with minimum power requirements
  • Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
  • Unique armature and seat design reduce unwanted particles from entering the armature area
  • Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
  • Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
  • Suitable for applications using water at temperatures up to 160°F (71°C)

Specs

Application:

Ice Machines

Voltage:

120v

Outlet Size:

7/16"

1/2"

Inlet Size:

1/4"

Max Pressure (PSI):

120

Min Pressure (PSI):

20

Material:

Polypropylene

Max Flow (GPH):

0.60

Min Flow (GPM):

0.06

Outlet Type:

20 UNF

Inlet Type:

Flare

Wattage:

35
