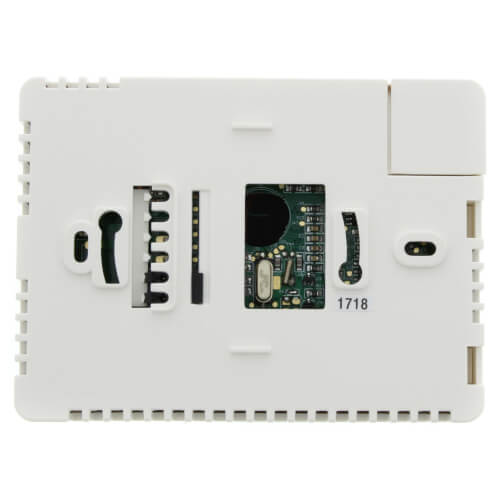

Main product image of 1H Programmable Thermostat w/ 72F Max
Magnifying glass
Hover image to zoom

1H Programmable Thermostat w/ 72F Max

SKU:
RS1100-72
Rating:
(2)
Q&A:
(0)
1H Programmable Thermostat w/ 72F Max
Magnifying glass
Hover image to zoom
RS1100-72 has been discontinued
Discontinued May 9, 2026
This product was discontinued by the manufacturer.

Product Highlights

Product Highlight: Programmability
Non-Programmable, 5-1-1 Day
Product Highlight: Voltage
24V
Product Highlight: Stages
1 Heat
Product Highlight: Width (Inches)
4-1/2" Width
Product Highlight: Height (Inches)
3.35" Height

Description

Overview:

The Robertshaw Climate RS1100-72 HEAT ONLY thermostat is the perfect thermostat for landlord control with a 72F high heat setting. With a beautiful vibrant blue backlight, the RS1000 series is Simply The Right Choice for an economical programmable heat only thermostat for new and replacement residential applications. The thermostat can be configured for Fahrenheit or Celsius, and can be used as manual or 5-1-1 day programmable operation.


Features:

  • Heating Only
  • Selectable Fahrenheit or Celsius Display
  • 5-1-1 Day Programmable & Manual (non-programmable) Operation
  • 4 Events / Day
  • Temporary Override with Override Icon on Display
  • Fan Selector for Automatic or Continuous Fan Operation
  • Adjustable Temperature Differential
  • Worry Free Memory Retention - Maintains programmed parameters even during power outages
  • HVAC equipment control using dry contact relays
  • Quick Wire Terminal Block - Uses sturdy wire clamps

Specifications:

  • Thermostat Family: RS1000 Series
  • Type: Electronic
  • HVAC Equipment: Gas, Electric, Oil
  • Control: Heat, Off
  • Humidity: No
  • Programmability: Non-Programmable/ 5-1-1 Day
  • Events/Day: 4
  • Voltage Type: Low
  • Voltage: 24V, Battery Required
  • Battery: Yes
  • Remote Sensors: No
  • Color: White
  • Orientation: Horizontal
  • Product Weight : 10 oz.
  • Electrical Contact Rating : 24V AC (18-30V AC) 1 amp maximum load per terminal
  • Accuracy : ± 1°F (± 0.5°C)
  • Power : 2 AAA alkaline batteries included
  • System Configurations : Gas, electric, and oil systems
  • Terminations : R, W

Specs

Application:

Heat Only

Programmability:

Non-Programmable

5-1-1 Day

Stages:

1 Heat

Voltage:

24V

Width (Inches):

4-1/2"

Height (Inches):

3.35"
