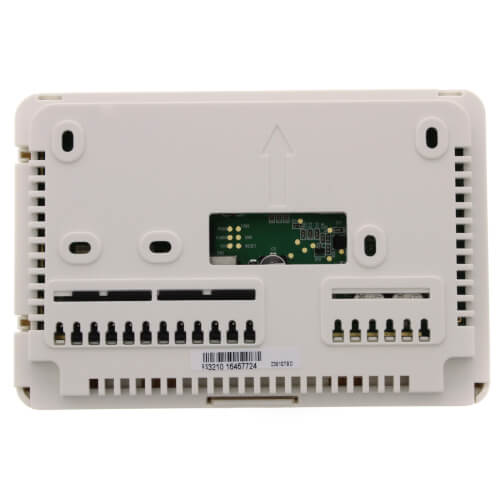

Digital 5-2 Day Programmable Thermostat (2 Heat/1 Cool)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
RS3210 has been discontinued
Discontinued April 1, 2021
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
Programmable, 5-2 Day
24V
2 Heat/1 Cool
Horizontal
Description
–
Compatible with the following heating / cooling systems
- Heat Pump (No Aux. or Emergency Heat)
- Heat Pump (with Aux. or Emergency Heat)
- Standard Heat & Cooling Systems
- Two Stage Heat & One Stage Cool
- Standard Heat Only Systems
- Millivolt Heat Only Systems ? Floor or Wall Furnaces (w/ 24VAC common)
- Standard Central Air Conditioning
- Gas or Oil Heat
- Electric Furnace
- Hydronic (Hot Water) Zone Heat-2 Wires
- Bigger brighter backlight makes it easy to read any time of the day.
- A fully adjustable temperature differential provides increased comfort control.
- The front load battery door makes it simple to replace the batteries.
- All RS2000 thermostats are fully compatible with all standard 24V AC heating and cooling systems.
- Low battery indicator
- Filter change reminder
- Mechanical Heat Backup This thermostat includes a bimetal switch that will automatically turn on the Heat when the temperature reaches about 41ºF (5ºC). WARNING: This switch only activates the heating terminal (W). The system itself must be capable of automatically turning the fan on. Without normal fan operation, severe damage to the heating system could result.
- Adjustable differential - thermostat is set at the factory to cycle at 2ºF (1ºC) above and below the set temperature (DIFF = 2). This setting has been designed to provide a comfortable room temperature under most conditions. However, if you find your system cycling too fast or too slow, then the DIFF can be adjusted to modify the cycle time.
- Compressor protection
- Power Source - 3.0V DC (2 AA alkaline batteries, included)
- Terminals - O, B, Y1, G, W2, E/W1, C, L, R
- Temperature Range - 45 - 95 Degrees F
- Dimensions 5-1/2 x 4-11/16 x 1-1/8
- Power Source: 24VAC with battery backup
Specs
–
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
|---|---|
| Programmability: | Programmable 5-2 Day |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Password Lockout Fan Control Auto Changeover Large Display |
| Operating Temp Range: | 45-95F |
| Stages: | 2 Heat/1 Cool |
| Voltage: | 24V |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Programmability
User Interface
Mount
Stages
CURRENT ITEM
Multi-Stage (Heat/Cool)
Heat Pump
Heat Pump
Programmable
5-2 Day
5-2 Day
Push Button
Horizontal
2 Heat/1 Cool
Product Reviews
2.75 out of 4 reviews
33% would recommend this product
5 star
25%
4 star
0%
3 star
0%
2 star
75%
1 star
0%
Showing 1-4 of 4 reviews
Robertshaw 3210 Thermostat
The instalation is to new to really give a good assesment. the stat. appears to be having difficulty finding the ambient temp. in the house. We have an older Robertshaw with a very accurate thermometer, and the diference is several degrees. If the problem continues I could not recommend this product.
Dick
Ohio
13 years ago
Verified Buyer
Was this review helpful to you?
Its OK
My biggest complaint with this thermostat is that the temperature display is off by at least 3 degrees. When two other indoor thermometers show 70 degrees this one shoes 73 or 74. Also when the thermostat calls for heat and closes its internal relay it seems to have an affect on its ability to sense the temperature of the air properly. For example, if the themostat is set at 73 degrees with a 1 degree differential the thermostat kicks on at 72. As soon as the internal relay kicks on the temperature display sometimes goes down one degree to 71. It works OK but I always have the differntial set at 1 because it actually seems more like 2 or 3 degrees with it changing the temperature around.
kc
kansas city
14 years ago
Was this review helpful to you?
Trouble
The only trouble I have with it is that the Temperature its show in the house is 3 degrees to high. When it shows 75 degrees its really 72 degrees. I can't find any way to adjust it down to where it should be.
joeb585[@]
Fl
15 years ago
Verified Buyer
Was this review helpful to you?
Would recommend 100%
Love the product [...] GREAT PRICE!Thank You.
RSVP
Ft Lauderdale
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: how do i program a rs3210 the direction on the cover do not work
Asked by don 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffFor complete directions on programming this thermostat please see the user manual located here: http://s3.supplyhouse.com/manuals/1292439397929/42364_PROD_FILE.pdf
Was this review helpful to you?
Q: how to set heat temperature on this unit?thanks
Asked by joe 16 years ago
Add your answer
Verified Reply- PexSupply StaffPlease follow the instructions in this Owner's Manual: http://s3.pexsupply.com/manuals/1292439397929/42364_PROD_FILE.pdf .
Was this review helpful to you?
