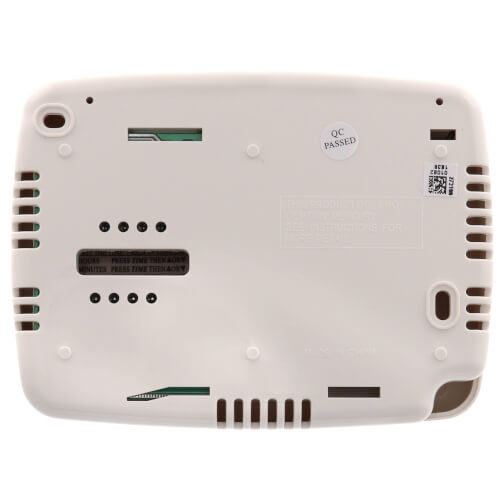

5+2 Day Programmable Thermostat, 24 Volts, Horizontal
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
- 70 Series Economy Heat Pump (2H/1C)
- 5+2 Day Programmable Digital Thermostat
- Backlit Display
- 24 Volts
- System Switch-Heat
- Emergency Fan Switch-Auto
- Energy Management Recovery
- Hardwired With Battery Back-Up
- Range 45-90° F.
- Terminals-R,C,Y,G,W2,E,O/B,L
Specs
| Amperage: | 1.5 |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Stages: | 2 Heat/1 Cool |
| Programmability: | 5-2 Day Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Fan Control |
| Power Method: | Hardwired |
| Temperature Range (F): | 45°F - 90°F |
| Voltage: | 24V Low voltage |
| Wattage: | 1 to 45 |
| Wiring: | Y L G O/B R W2 C E |
| Color: | White |
| Height: | 3-7/10" |
| Width: | 5-1/10" |
| Depth (Inches): | 1-1/10" |
Questions?
Compare Similar Products
Heat Pump
Programmable
You May Also Need
Product Reviews
Same as old thermostat and much cheaper than a big box store
Product Q&A
6 QuestionsQ: I'm replacing an w-r model 1f79. Looks like the wiring is exactly the same for the programmable. Correct?
Asked by Rob 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffFor installation wiring instructions for this thermostat please see here: http://s3.supplyhouse.com/product_files/White%20Rodgers%20-%201F79-111%20-%20Install%20Instructions.pdf
Q: My thermostat is on a program but I want to manually control the temperature, how do I turn off the program setting?
Asked by k 14 years ago
Add your answer
Verified Reply- PexSupply StaffWe'd recommend that you use the thermostat's 'Hold' mode. See page of the manual at the link below for more details. http://s3.pexsupply.com/manuals/1284581861158/39200_PROD_FILE.pdf
Q: what does the (EMER) mean on the T-stat.
Asked by dozer 14 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to page 4 of the manual at the link below. http://s3.pexsupply.com/manuals/1284581861158/39200_PROD_FILE.pdf
When in the EMER position the heat pump will not be activated and only heat from the resistant heat strips will be provided.
emergency
Q: Need operational manual
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the link below for the Installation and Operation Instructions provided by the manufacturer. http://s3.pexsupply.com/manuals/1284581861158/39200_PROD_FILE.pdf
Q: what does the hold button mean?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe Hold Temperature button means the thermostat can hold any temperature within its range for an indefinite period, without reverting to the programmed temperature. You can find this on page 5 of the installation manual here: http://s3.pexsupply.com/manuals/1284581861158/39200_PROD_FILE.pdf .
Q: How does this work? Just moved in no instructions.
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe operation instructions can be seen in the link provided: http://s3.pexsupply.com/manuals/1284581861158/39200_PROD_FILE.pdf
