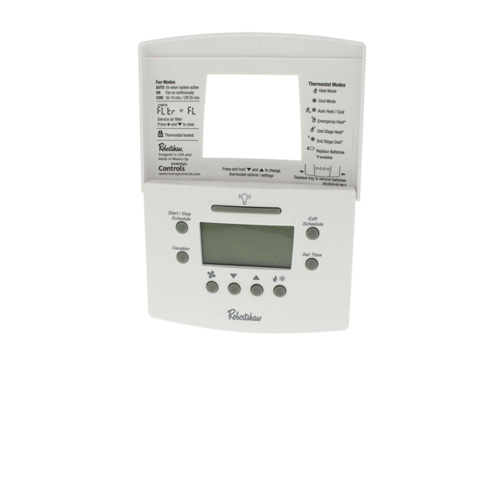

Digital 5-2 Day Programmable Thermostat Heat Pump/Single Stage (1 Heat/1 Cool)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (3)
Product Highlights
Description
Features
- Fully programmable with soft touch keys to easily set four events per day AND 5-2 day scheduling.
- Pop-up Wizard to customize thermostat settings with an instant start-up menu.
- Vacation setpoint override to reduce energy use while away from home.
- The RS5000 thermostats are fully compatible with all standard 24V AC heating and cooling systems.
- Additional compatibility with multi-stage gas/electric furnaces and heat pump systems is available in the RS5220 model
Specs
| Application: | Single-Stage (Heat/Cool) Heat Pump |
|---|---|
| Stages: | 1 Heat/1 Cool |
| Programmability: | 5-2 Day Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Large Display Fan Control Auto Changeover Password Lockout |
| Voltage: | 24V |
| Changeover: | Auto |
| Operating Temp Range: | 45-95F |
Questions?
Compare Similar Products
Heat Pump
Programmable
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Accurate, differential setting and Energy Efficient feature
Most Liked Negative Review
Nice-but needs improvement!
Perfect.
It works as I hoped it would!
I would buy this thermostat for my home again and again.
Accurate, differential setting and Energy Efficient feature
Nice thermostat
Shipped quickly and arrived as described.
Robert Shaw Thermostats
Excellent product
digital thermostat heat pump
I would use this company again
Product Q&A
7 QuestionsQ: how do you change the temperature reading from Celsius to Fahrenheit?
Asked by apt 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffin user setting under the SCAL, heading
hold down the up&down arrow buttons. the display will start blinking either F or C. press the down arrow and the C will change to F. Press the schedule button to reset
To Make Changes to the Settings When the up arrow and the down arrows are pressed at the same time, the thermostat will display the current settings in order. To change any setting; When the SCAL setting is visible and flashing press the up or down arrow to adjust the SCAL setting on the screen. To exit the changes and save: Press START/STOP SCHEDULE. The thermostat will return to operation.
Q: My system has a Robert Shaw 300-252. Is the RS 5110 equivalent to 300-252?
Asked by Ronald 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, this thermostat is the direct cross reference of the 300-252.
Q: is this t-stat a good choice for hydroair heat system with AC.if not what is.need 3 degree diff.to prevent short cycles.also can auto changeover be shut off and used manually.
Asked by russell 13 years ago
Add your answer
You can set the differential up to 3 degrees. Auto changeover can not be turned off specifically but you can manually override your programed temp setting easily. But when you override, your override to the temp setting will expire and the programmed temp setting will take over again in 3 hours. Dennis
Q: Does this unit have adjustable temperature differential like the 9600 did?
Asked by Steve 14 years ago
Add your answer
yes. The 5110 has 3 degree differential. I recently was educating myself on the Robertshaw thermostats with purchasing in mind. Every one of the programables are 3 degrees differentials. I purchased two 8600s recently. Lorna
Yes, .5 degrees to 3 degrees.
Yes. You can set the temperature differential from 1/2 of a degree to 3 degrees. This is the reason I bought this unit to replace a Honeywell brand which was factory set and could not be changed.
The RS5110 provides for easy on-screen differential setting changes. Supports a 2-stage system. I haven't had to use other than the default setting. Dennis
yes, 0.5 to 3.0 fahrenheit or 0.5 to 1.5 cel. I dont know what the 9600 had. i really like this stat.
According to the documentation, it has a .5 to 3.0 adjustable temperature differential (factory set to 1.0).
Yes, it does. See the sell sheet, http://www.robertshawtstats.com/modules/catalog/SearchResults.aspx?catName=19497&pID=19531&mode=categorysearch .
Yes it has adjustable temperature differential.
sorry it took so long forgot my password. Yes this is completely adjustable for most if not all functions.
Q: Will this replace an "old" style mercury thermostat used for an oil fired hot water radiator system
Asked by john1427 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this thermostat is compatible with an oil-fired system. Please just confirm that the system is a 1 heat / 1 cool system and that the other specifications fit the application.
Q: Will this thermostat work for a closed loop radiant 2 zone system?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, as long as it is a 1 Heat / 1 Cool system.
Yes - I have a 3 zone radiant system and have 3 of these thermostats. I tried 2 different Honeywell thermostats and they didn't work well because they tried to hold the temperature within +/- 1 degree and the system kept going on and off. They don't have a swing/differential adjustment on any of their thermostats. The Robert Shaw allows you to adjust swing/differential in 1/2 degree steps up to 3 degrees. They work great.
Q: Is this the best choice for a Robert Shaw thermostat to use to replace the 9600 model I presently have in a vacation home? I want to have an AC range up to 95 degrees. The home is unoccupied during the summers with the AC set to max.
Asked by Jim 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this is the manufacturer's recommended replacement for the 9600.
