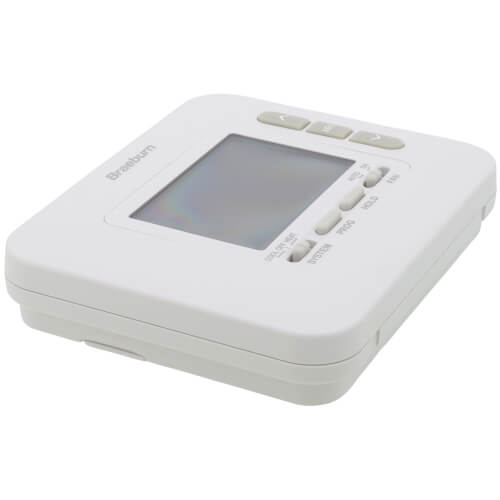

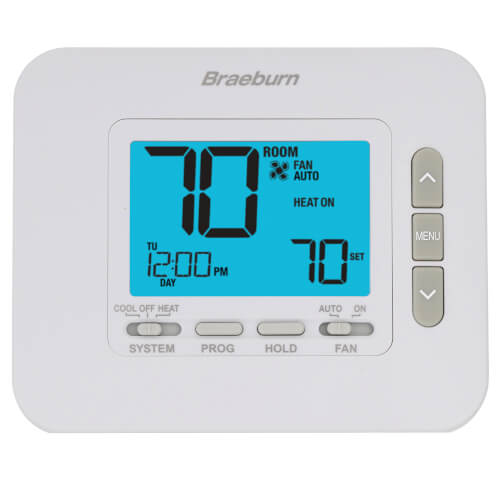

7 Day, 5-2 Day Programmable Thermostat (1 Heat/1 Cool)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$50.63 each
In Stock
Get 49 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 24Z14, 2020, RS5110, 9610, BR5000, 9600
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Programmable, 5-2 Day, 7 Day
24V
1 Heat/1 Cool
Vertical, Horizontal
Hardwired, Battery
5 Year Warranty
Description
–
Product Overview

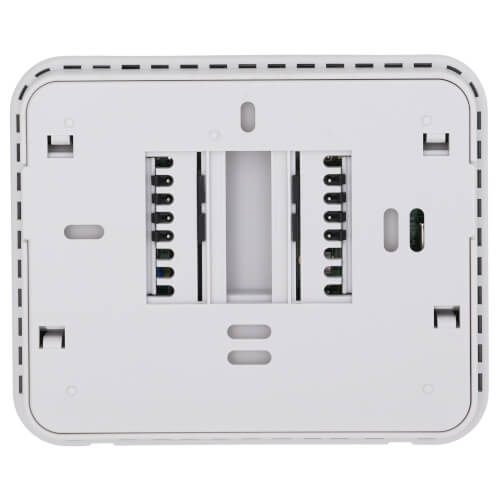

The universal programmable thermostat shall be a Braeburnfi model number 2030, 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer and program settings. The thermo stat shall be compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and a separate sub-base. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor, adaptive recovery mode (ARM™) and installer lock mode.
Product Features
The universal programmable thermostat shall be a Braeburnfi model number 2030, 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer and program settings. The thermo stat shall be compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and a separate sub-base. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor, adaptive recovery mode (ARM™) and installer lock mode.
Product Features
- 7 Day, 5-2 Day or Non-Programmable
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- SmartLimit Temperature Limits
- SpeedSet Programming Mode
- Hardwire or Battery Powered
- Installer Lock Mode
- Filter Check Monitor
- Optional Celsius Display
- Separate O and B Terminals
- Adaptive Recovery Mode (ARM )
- Adjustable Temperature Differential
- Compatible with 2-Wire Hydronic Zone Systems
Specs
–
| Product Type: | Thermostat |
|---|---|
| Application: | Single-Stage (Heat/Cool) Heat Pump |
| Stages: | 1 Heat/1 Cool |
| Programmability: | Programmable 5-2 Day 7 Day |
| User Interface: | Push Button |
| Mount: | Vertical Horizontal |
| Options: | Large Display |
| Power Method: | Hardwired Battery |
| Terminations: | Rc, Rh, O, B, Y1, W1, G, C |
| Voltage: | 24V |
| Warranty: | 5 Year |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Stages
Programmability
User Interface
Mount
CURRENT ITEM
Single-Stage (Heat/Cool)
Heat Pump
Heat Pump
1 Heat/1 Cool
Programmable
5-2 Day
7 Day
5-2 Day
7 Day
Push Button
Vertical
Horizontal
Horizontal
You May Also Need
Product Reviews
Showing 1-1 of 1 reviews
No
You cannot get the thermostat the light up unless you change the temperature or change the menu
Jw
Fenton, Michigan
3 years ago
Verified Buyer
Was this review helpful to you?
