Description

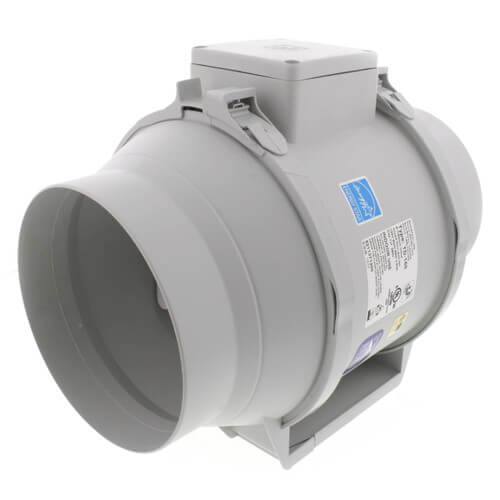

Duct Fan, In-Line, 2 Speed Mixed Flow, Fits Duct Dia 6 In, CFM @ 0.000-In SP 293/218, CFM @ 0.125-In SP 273/193, Max Inlet Temp 104 Deg F, Voltage 120, 60 Hz, Single Phase, Max Amps 0.54, Bearing Type Ball, Housing Dia 7 7/8 In, Length 8 3/8 In, Mounting Position Horizontal or Vertical, Includes Mounting Bracket.

Features:
  • Hz: 60
  • Bearing Type: Ball
  • Mounting Position: Horizontal or Vertical
  • Includes: Mounting Bracket
  • Phase: 1
  • Voltage: 120V
  • Motor Enclosure: Totally Enclosed
  • Item: Mixed Flow Duct Fan
  • Number of Speeds: 2
  • Speed Control: Mfr. No. 48C172
  • CFM @ 0.000-In. SP: 293/218
  • CFM @ 0.125-In. SP: 273/193
  • CFM @ 0.250-In. SP: 250/163
  • CFM @ 0.375-In. SP: 227/128
  • CFM @ 0.500-In. SP: 206/105
  • CFM @ 0.750-In. SP: 131/24
  • CFM @ 1.000-In. SP: 35
  • Max. Amps: 0.54
  • Max. Wattage: 65/54
  • Motor HP: 1/10
  • Motor RPM: 2300/1700
  • Housing Material: Thermoplastic
  • Fits Duct Dia.: 6"
  • Flange Width: 1-1/8"
  • Standards: C-UL-US
  • Max. Inlet Temp.: 104 Degrees F
  • Housing Dia.: 7-7/8"
  • Length: 8-3/8"
  • Inlet and Outlet Dia.: 5-7/8"
Read more
Manuals (1)
Specs
Duct Size:
6"
Voltage:
120v
RPM:
2289
Air Flow Capacity (CFM):
293
Max. Watts:
65
Bearings:
Ball
Amperage:
0.54
Housing Material:
Thermoplastic
Warranty:
5 Year Limited Warranty
×
