Description

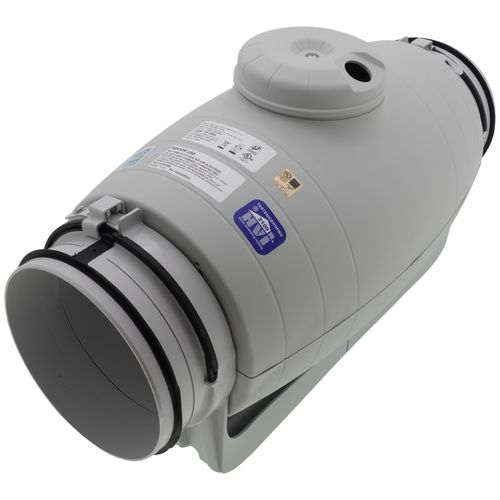

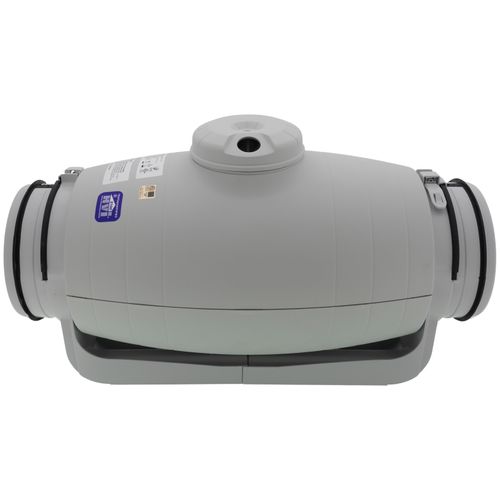

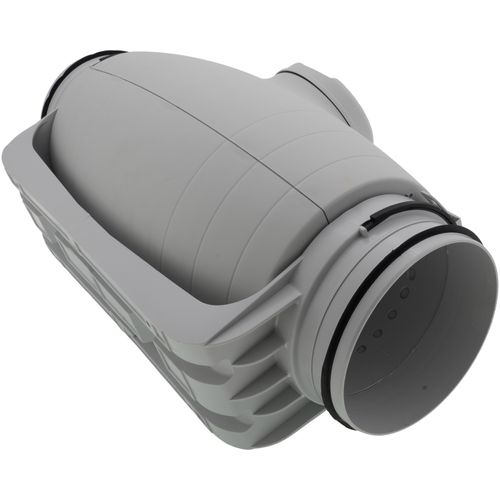

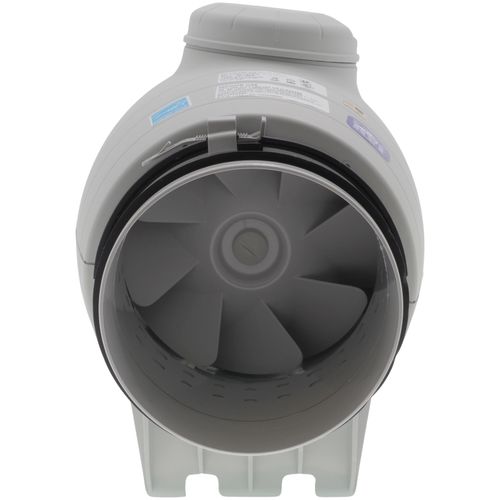

Duct Fan, In-Line, One Speed Mixed Flow, Fits Duct Dia. (In.) 6, Inlet and Outlet Dia. (In.) 6, CFM @ 0.000-In. SP 333/239, CFM @ 0.125-In. SP 315/209, Max. Inlet Temp. (Deg. F) 140, Voltage 120, 60 Hz, 1 Phase, Max. Amps .54, Max. Wattage 65, Motor RPM 2700/2000, Motor Enclosure Totally Enclosed, Bearing Type Ball, Housing Dia. (In.) 8-11/16, Length (In.) 10-13/16, Height (In.) 8-11/16, Depth (In.) 19-1/16, Flange Width (In.) 1-1/12, Speed Control Yes, Housing Material Thermoplastic.

Features:
  • Hz: 60
  • Bearing Type: Ball
  • Mounting Position: Horizontal or Vertical
  • Includes: Mounting Bracket
  • Phase: 1
  • Voltage: 120V
  • Motor Enclosure: Totally Enclosed
  • Item: Mixed Flow Duct Fan
  • Number of Speeds: 1
  • Speed Control: Yes
  • Housing Finish: Off White
  • CFM @ 0.000-In. SP: 333/239
  • CFM @ 0.125-In. SP: 315/209
  • CFM @ 0.250-In. SP: 286/181
  • CFM @ 0.375-In. SP: 271/154
  • CFM @ 0.500-In. SP: 257/120
  • CFM @ 0.750-In. SP: 178/62
  • CFM @ 1.000-In. SP: 77/0
  • Max. Amps: 0.54
  • Max. Wattage: 65
  • Motor RPM: 2700/2000
  • Housing Material: Thermoplastic
  • Fits Duct Dia.: 6"
  • Flange Width: 1-1/12"
  • Standards: UL, HVI
  • Green Certification or Other Recognition: ENERGY STAR Rated
  • Width: 19-1/16"
  • Height: 8-11/16"
  • Max. Inlet Temp.: 140 Degrees F
  • Housing Dia.: 8-11/16"
  • Length: 10-13/16"
  • Inlet and Outlet Dia.: 6"
Read more
Manuals (1)
Specs
Duct Size:
6"
Voltage:
120v
RPM:
2700
Air Flow Capacity (CFM):
333
Max. Watts:
65
Bearings:
Ball
Amperage:
0.54
Housing Material:
Thermoplastic
Warranty:
5 Year Limited Warranty
×
