SaniCom1 Heavy Duty Commercial Drain Pump Light Duty Water Pump

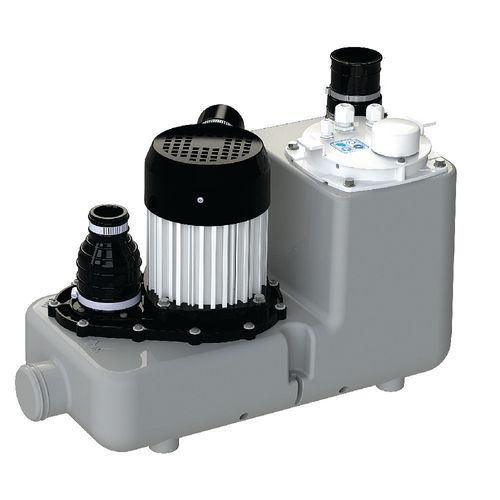

Saniflo 018 Sanicom 1 Heavy Duty Commercial Drain Pump
The Saniflo 018 Sanicom 1 is a 1 HP gray water pump engineered for commercial and residential applications. It accepts hot, acidic, or greasy wastewater from multiple fixtures, making it ideal for environments where gravity drainage isn't feasible.

Key Features

• 1 HP oil-filled, thermally protected motor
• Discharge capacity: up to 25 ft vertically or 250 ft horizontally
• Temperature rating: 194°F
• Compact dimensions: 13" H x 17" W x 9" D
• Weight: 22 lbs
• Noise level: (_<) 68 dBA at 3 ft
• 2-year warranty

Compatibility & Applications

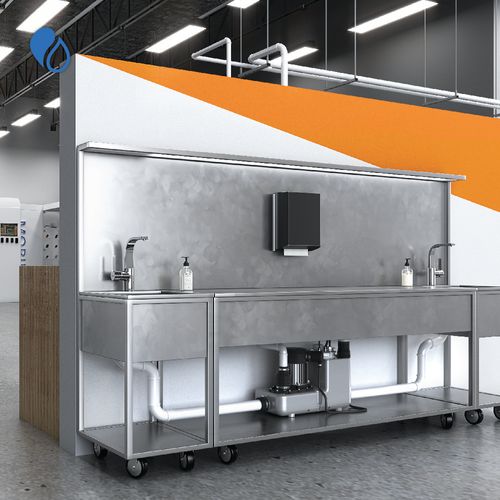

• Suitable for commercial kitchens, laundry rooms, barista stations, and residential installations
• Handles wastewater from dishwashers, washing machines, sinks, showers, and bathtubs
• Ideal for environments with high-temperature or acidic wastewater

Installation & Operation Notes

• Requires 120V, 60Hz electrical supply; maximum amperage: 10 A
• Activated by internal pressure switch when water enters the unit
• Discharge pipe diameter: 1"
• Two 2" side inlets for multiple fixture connections
• Must be vented using a two-way air vent; mechanical vents (AAVs) are not permitted
• Equipped with non-return valve to prevent backflow
• 360° Rotatable discharge elbow for flexible installation

Certifications & Compliance

• CSA (IPC, NSPC) certified
• IAPMO (UPC) listed
• Complies with ASME A112.3.4 and CSA B45.9 standards
