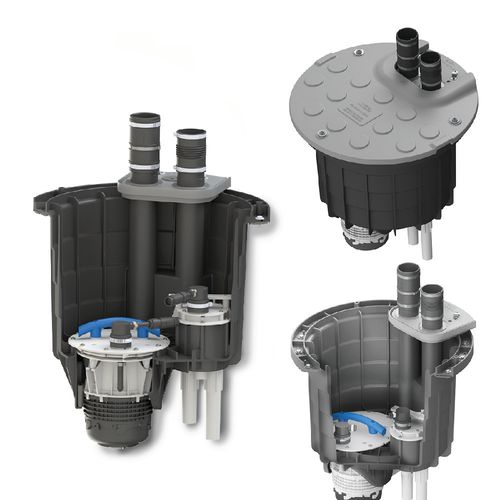

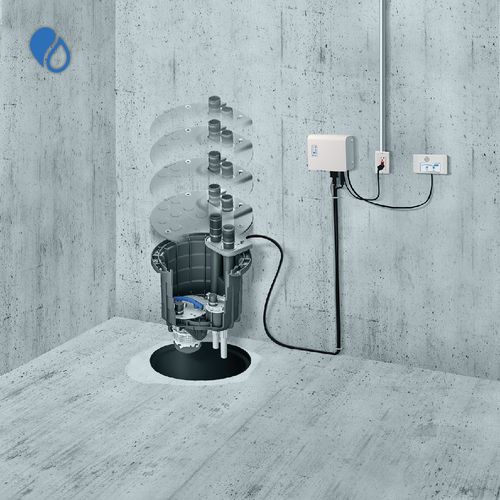

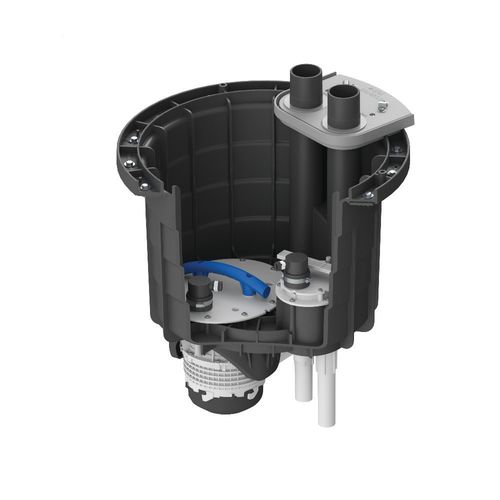

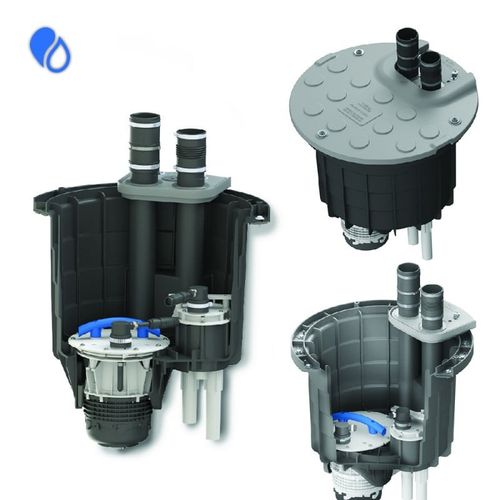

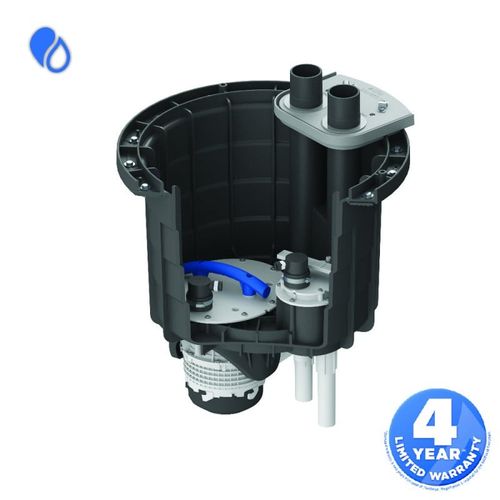

Sanipit 24 GR Retrofit Pump Kit w/ 1 HP Grinder Pump and Air Pressure Switches
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,425.00 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
32"
120v
10 Amps
1 HP
Description
–
The Saniflo 053 Sanipit 24 GR is a pre-assembled, heavy-duty retrofit pump kit featuring a 1 HP grinder pump and triple-redundant air pressure switches. Designed for residential and commercial applications, this kit is ideal for replacing faulty sewage ejector pumps in existing 24-inch basins.
Key Features
Compatibility & Applications
Installation & Operation Notes
Certifications & Compliance
Key Features
- 1 HP oil-filled, thermally protected motor
- Stainless steel grinder blade
- Discharge capacity: up to 66 GPM
- Maximum vertical lift: 25 ft; shut-off head: 33 ft
- Maximum horizontal discharge: 328 ft
- External control panel with visual and audible alarm system (15 ft cable)
- IP68 rated for possible submergence
- Dry cavity design for easy maintenance
- Dimensions: 21.75" L x 15.5" W x 24.75" H
- Weight: 44 lbs
- Noise level: (_<) 68 dBA at 3 ft
- 4-year limited warranty
Compatibility & Applications
- Fits most existing 24" diameter basins from manufacturers like Liberty Pumps, Zoeller, and Myers
- Suitable for residential and commercial installations
- Handles waste from multiple fixtures including toilets, sinks, bathtubs, showers, washing machines, and dishwashers
- Ideal for basements, rental units, offices, warehouses, and other areas lacking gravity drainage
Installation & Operation Notes
- Requires 120V, 60Hz electrical supply; maximum amperage: 10 A
- Activated by internal air pressure switches when wastewater reaches trigger level
- Inlet : 4"
- Vent connection: 2" on top of the enclosure; mechanical vents (AAVs) are not permitted
- Discharge pipe: 2" rigid pipe connected on the top of the pump
- Triple-redundant air pressure switch system
- Internal discharge pipe equipped with a check valve to prevent backflow
- Isolating valves (ball or gate valves) must be installed on waste inlets and discharge pipe for safe maintenance
- If the incoming rate exceeds the discharge rate, the system activates the alarm stage
Certifications & Compliance
- CSA (IPC, NSPC) certified
- Complies with ASME A112.3.4 and CSA B45.9 standards
Specs
–
| Cord Length: | 32" |
|---|---|
| Voltage: | 120v |
| Amperage: | 10 |
| Shutoff Head (ft.): | 33' |
| Horse Power: | 1 |
