Sanipit 24 GR CB Pre-Assembled Packaged Grinding 1 HP Pump System w/ Basin and Control Panel/Alarm

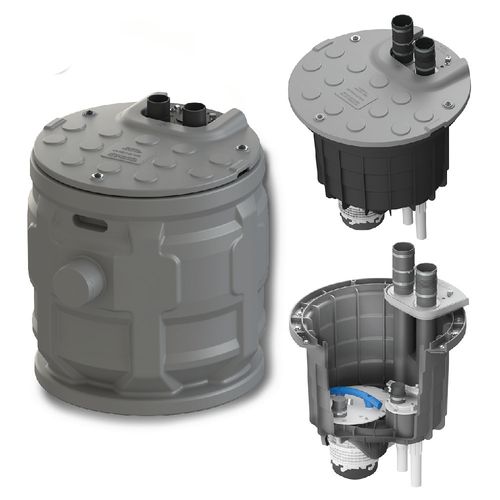

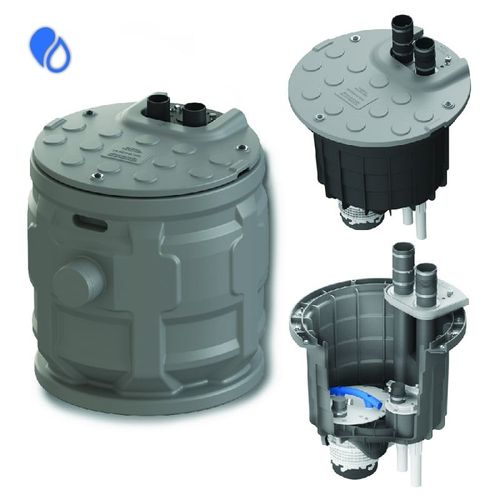

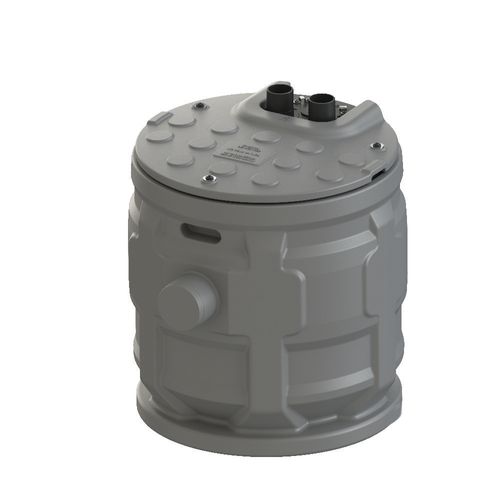

The Saniflo 054 Sanipit 24 GR CB is a pre-assembled, heavy-duty 24" x 24" grinding pump system designed for new residential and commercial installations. Equipped with a 1 HP stainless steel grinder pump this is ideal for environments where gravity drainage isn't feasible.

Key Features

• 1 HP oil-filled, thermally protected motor
• Stainless steel grinder blade
• Discharge capacity: up to 66 GPM
• Maximum vertical lift: 25 ft; shut-off head: 33 ft
• Maximum horizontal discharge: 328 ft
• External control panel with visual and audible alarm system (15 ft cable)
• IP68 rated for possible submergence

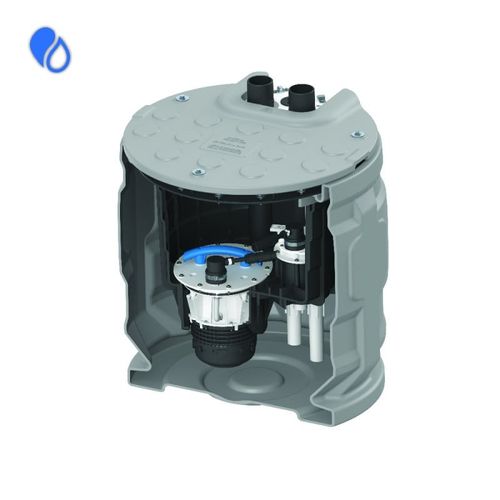

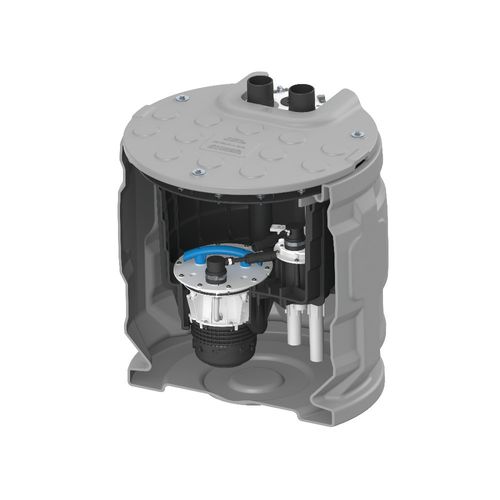

• Dry cavity design for easy maintenance
• Basin capacity: 21 gallons
• Dimensions: 24.75" H x 15.5" W x 21.75" D
• Weight: 66 lbs
• Noise level: (_<) 68 dBA at 3 ft

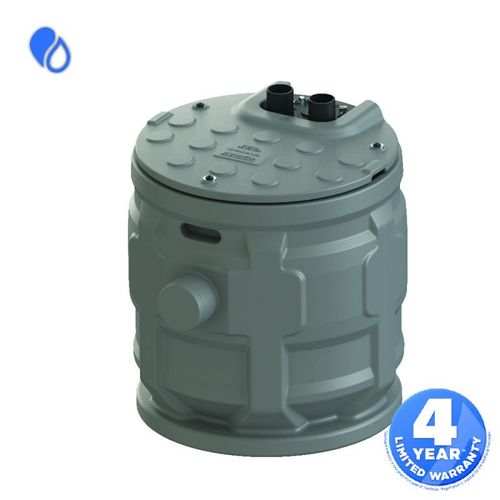

• 4-year limited warranty

Compatibility & Applications

• Suitable for residential and commercial installations
• Handles waste from multiple fixtures including toilets, sinks, bathtubs, showers, washing machines, and dishwashers
• Ideal for basements, rental units, offices, warehouses, and other areas lacking gravity drainage

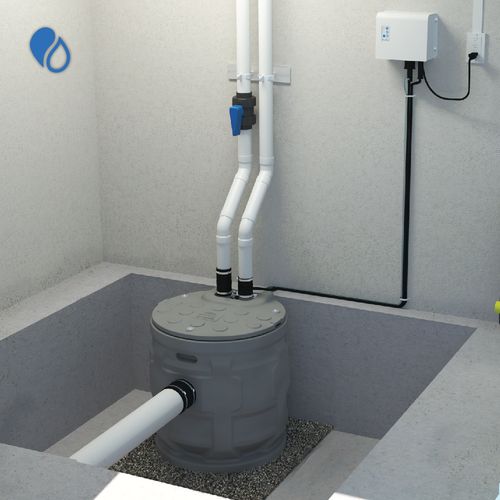

Installation & Operation Notes

• Requires 120V, 60Hz electrical supply; maximum amperage: 10 A
• Activated by internal air pressure switches when wastewater reaches trigger level
• Triple-redundant air pressure switch system
• Inlet: 4"
• Vent connection: 2" on top of the enclosure; mechanical vents (AAVs) are not permitted
• Discharge pipe: 2" rigid pipe connected on the top of the pump
• Internal discharge pipe equipped with a check valve to prevent backflow
• If the incoming rate exceeds the discharge rate, the system activates the alarm stage

Certifications & Compliance

• CSA (IPC, NSPC) certified
• Complies with ASME A112.3.4 and CSA B45.9 standards
