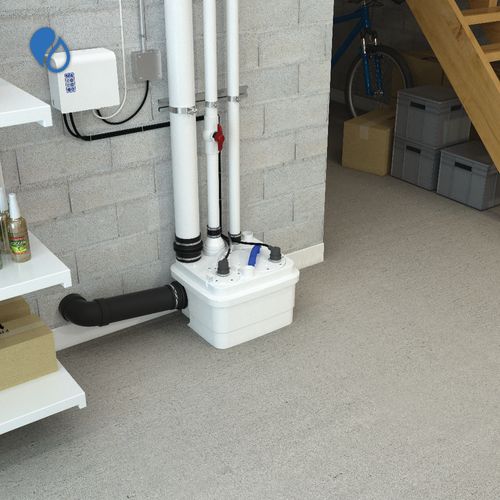

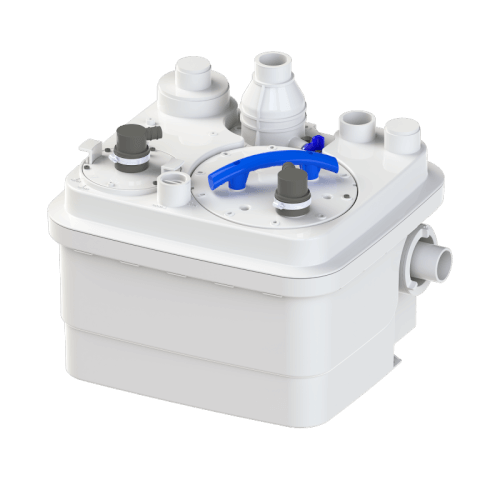

Sanicubic 1 Simplex System, Above the Floor Installation (White)

The Saniflo 089 Sanicubic 1 Simplex System is a heavy-duty, above-floor grinder pump designed for handling wastewater from multiple fixtures in residential and commercial settings. Equipped with a 1 HP motor, it efficiently processes waste, including sanitary products.

Key Features

• 1 HP oil-filled, thermally protected motor
• Grinder system with stainless steel cutting blade
• Discharge capacity: up to 36 feet vertically or 328 feet horizontally.
• Handles up to 50 gallons per minute
• IP68 rated enclosure with external control panel
• Visual and audible alarm system with 15' wire
• 8.5-gallon tank capacity
• Temperature rating: up to 158°F
• Noise level (_<) 68 dBA at 3 feet
• Dimensions: 13-3/4" H x 18" W x 16-3/4" D
• Weight: 50 lbs

Compatibility & Applications

• Suitable for residential and commercial installations
• Compatible with toilets, sinks, bathtubs, showers, washing machines, and dishwashers
• Ideal for uncontrolled environments like rental units, offices, and warehouses

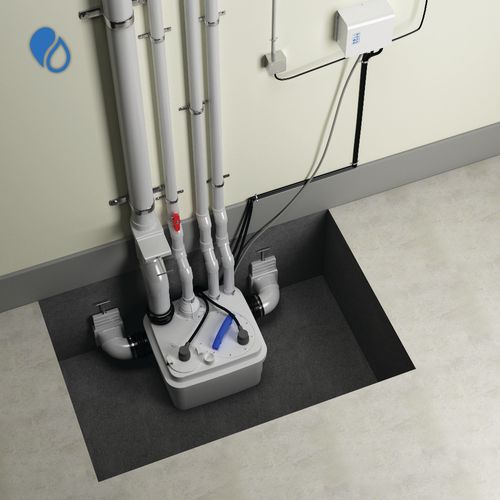

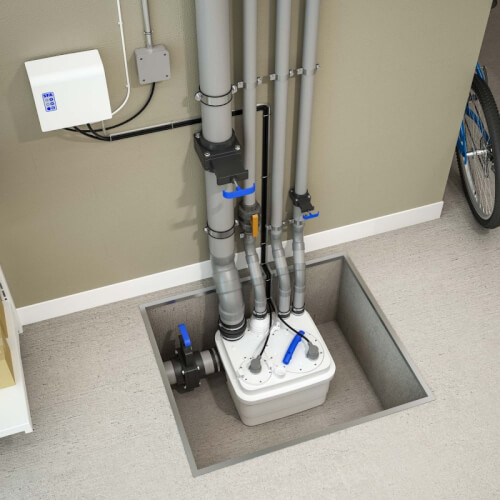

• Can be retrofitted into existing sewage ejector basins (minimum 24" diameter)

Installation & Operation Notes

• Activates via internal pressure chamber and microswitch when water enters the unit
• Electrical requirement: 120V, 60Hz, 4.5A
• Four inlets (1-1/2" or 4") for multiple fixture connections
• 1-1/2" vent connection mechanical vents (AAVs) are not permitted
• 1-1/2" discharge pipe with built-in check valve
• Built-in alarms activate if incoming rate exceeds discharge capacity

Certifications & Compliance

• CSA Certified (IPC, NSPC)
• IAPMO (UPC) listed - ASME A112.3.4
• Macerating Standard CSA B45.9
