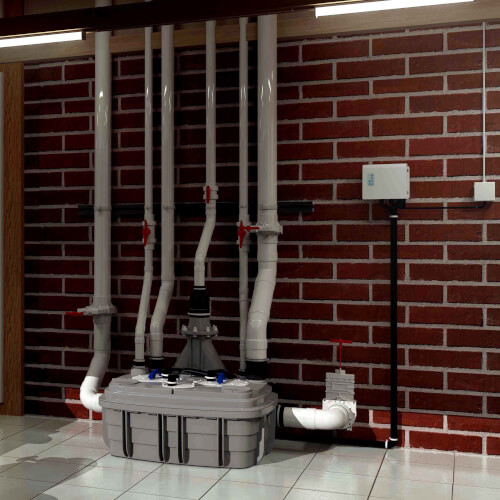

Sanicubic 2 VX Heavy Duty Simplex Vortex System (Grey)

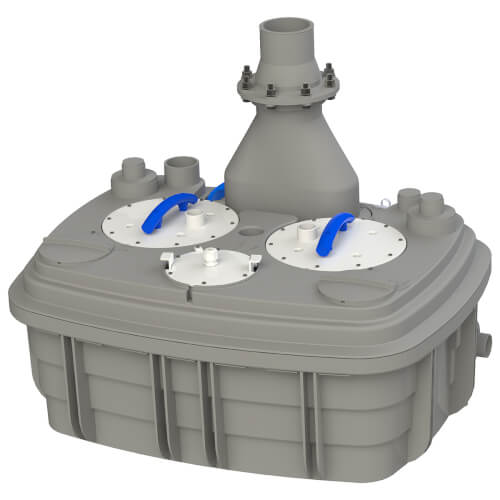

The Saniflo 099 Sanicubic 2 VX is a heavy-duty duplex vortex lift station designed to handle black and gray water from multiple fixtures in both residential and commercial settings. Equipped with dual 1.5 HP motors and vortex impellers, it pumps wastewater containing solids up to 2 inches in diameter, making it ideal for environments where gravity drainage isn't feasible.

Key Features

• Dual 1.5 HP oil-filled, thermally protected motors
• Vortex impellers capable of handling solids up to 2" in diameter
• Discharge capacity: up to 36 ft vertically (2" pipe) or 20 ft vertically (4" pipe); up to 328 ft horizontally (2" pipe) or 1,640 ft horizontally (4" pipe)
• Discharge rate: 145 GPM at 3 ft head (2" pipe); 250 GPM at 3 ft head (4" pipe)
• External control panel with visual and audible alarm system (15 ft cable)
• IP68 rated for possible submergence
• Tank capacity: 31.7 gallons
• Dimensions: 29-5/8" H x 36" W x 28" D
• Weight: 223 lbs
• Noise level: (_<) 70 dBA at 3 ft
• 2-year limited warranty

Compatibility & Applications

• Suitable for residential and commercial installations
• Handles waste from multiple fixtures including toilets, sinks, bathtubs, showers, washing machines, and dishwashers
• Ideal for basements, rental units, offices, warehouses, and other areas lacking gravity drainage

Installation & Operation Notes

• Requires 220-240V, 60Hz electrical supply; maximum amperage: 12 A
• Activated by internal pressure switches when wastewater reaches trigger level
• Inlets located on either side at the bottom and on top of the unit
• Five inlets accommodating 1-1/2" or 4" diameter pipes
• Discharge pipe options: 2" or 4" rigid pipes
• Built-in non-return valves on discharge connections
• Vent connection: 2-1/2" on top of the enclosure; mechanical vents (AAVs) are not permitted
• If the incoming rate exceeds the discharge rate, the system activates the alarm stage

Certifications & Compliance

• CSA (IPC, NSPC) certified
• IAPMO (UPC) listed
• Complies with ASME A112.3.4 and CSA B45.9 standards
