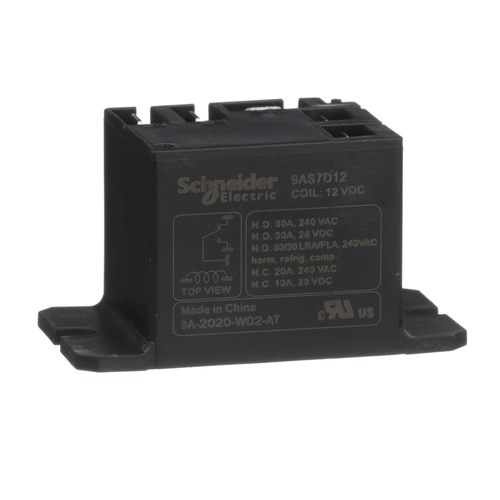

Harmony 9A Electromechanical Power Relay w/ Flanged Mount & Sealed Cover (30A, SPDT-NO, 12 VDC)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$12.73 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
12 VDC
30 Amps
18 Months Warranty
Description
–
- Range Of Product: Harmony
- [Ie] Rated Operational Current: 30 A at 240 V AC-1 (NO) || 20 A at 240 V AC-1 (NC) || 30 A at 28 V DC (NO) (on resistive load) || 10 A at 28 V DC (NC) (on resistive load) || 22 A at 120 V AC-8a (NO) (full load) || 98 A at 120 V AC-8a (NO) (locked rotor) || 30 A at 240 V AC-8a (NO) (full load) || 80 A at 240 V AC-8a (NO) (locked rotor) || 12 A at 240 V AC-8a (NC) (full load) || 30 A at 240 V AC-8a (NC) (locked rotor) || 10 A at 277 V AC-8a (NC) (full load) || 33 A at 277 V AC-8a (NC) (locked rotor) || 10 A at 277 V AC-5a (NO) (ballast) || 3 A at 277 V AC-5a (NC) (ballast)
- Operating Position: any position
- Control Circuit Voltage Limits: 0.8...1.1 Uc
- [Ui] Rated Insulation Voltage: 320 V
- Product Or Component Type: power relay
- Mercury Free: Yes
- Phenolic Free Solution: Yes
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mounting Support: panel flange
- Pvc Free: Yes
- Depth: 27.8 mm
- Reach Free Of Svhc: Yes
- Switch Function: SPDT
- Circularity Profile: ENVEOLI2006003EN
- Drop-Out Voltage Threshold: >= 0.1 Uc
- Rated Power In Hp: 1 hp at 125 V AC, NO || 2 hp at 250 V AC, NO || 0.25 hp at 125 V AC, NC || 0.5 hp at 250 V AC, NC
- Product Certifications: UL
- Vibration Resistance: +/- 0.75 mm 10-55 Hz operating || +/- 0.75 mm 10-55 Hz not operating
- Pollution Degree: 3
- Network Frequency: 50-60 Hz
- Eu Rohs Directive: Compliant
- Width: 27.3 mm
- Ambient Air Temperature For Operation: -40-40 °C
- [Uc] Control Circuit Voltage: 12 V DC
- Maximum Switching Voltage: 277 V AC || 28 V DC
- [Uimp] Rated Impulse Withstand Voltage: 4 kV 1.2/50 µs
- Reset Time: 10 ms
- Dielectric Strength: 2500 V AC between coil and contact || 1500 V between contacts with micro disconnection
- Operating Time: 20 ms
- Net Weight: 0.032 kg
- Sustainable Offer Status: Green Premium product
- Environmental Disclosure: ENVPEP2006003EN
- Standards: UL 60947-4-1
- Input Current: 30 A NO || 20 A NC
- Toxic Heavy Metal Free: Yes
- Toxic Heavy Metal Free: Yes
- Rohs Exemption Information: Yes
- Contacts Material: silver alloy contacts
- Electrical Durability: 100000 cycles, 30 A at 240 V, AC-1 NO || 50000 cycles for resistive load, 30 A at 28 V, DC NO || 30000 cycles for full load, 22 A at 120 V, AC-8a NO || 30000 cycles for full load, 30 A at 240 V, AC-8a NO || 1000 cycles for motor load NO || 6000 cycles for ballast load, 10 A at 277 V, AC-5a NO || 100000 cycles, 20 A at 240 V, AC-1 NC || 100000 cycles for resistive load, 10 A at 28 V, DC NC || 30000 cycles for full load, 12 A at 240 V, AC-8a NC || 30000 cycles for full load, 10 A at 277 V, AC-8a NC || 1000 cycles for motor load NC || 6000 cycles for ballast load, 3 A at 277 V, AC-5a NC
- Average Resistance: 155 Ohm at 23 °C +/- 10 %
- Average Coil Consumption: 0.9 W
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rated Power In Va: 470 VA at 240 V, NO on pilot duty || 275 VA at 240 V, NC on pilot duty
- Protection Category: RT III
- Connections - Terminals: Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm || Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
- Mechanical Durability: 10000000 cycles
- China Rohs Regulation: X
- Height: 50 mm
- Shock Resistance: 10 gn operating || 100 gn not operating
Specs
–
| Amperage: | 30 |
|---|---|
| Warranty: | 18 Months |
| Voltage: | 12 VDC |
