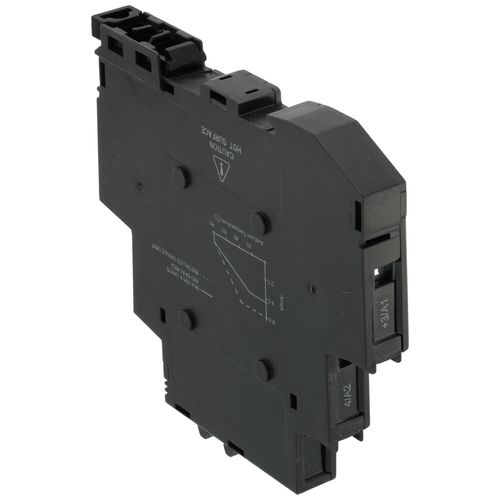

Harmony Solid State Modular Relay, 1PH, DC Switching, 1 NO (6A, 4-32 VDC in, 1-60 VDC out)

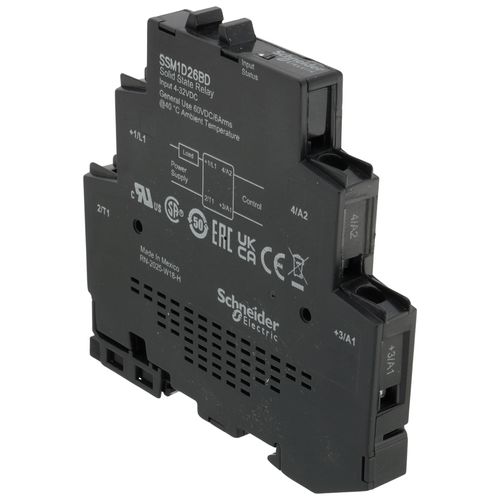

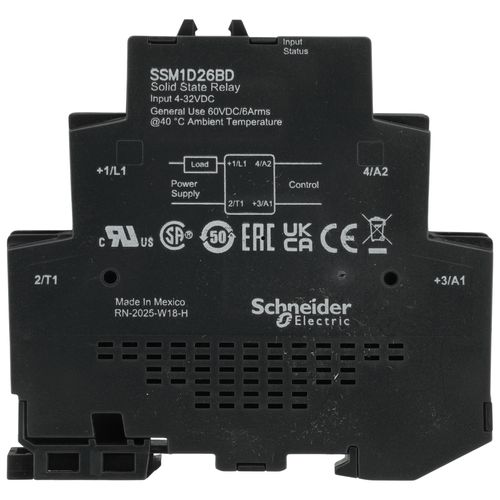

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

• Mercury Free: Yes
• Marking: CE
• Maximum Switching Voltage: 1 V DC turn-off
• Product Certifications: UL || CSA
• Tightening Torque: 0.5...0.8 N.m for input || 0.5...0.8 N.m for output
• Insulation Resistance: 1000 MOhm at 500 V DC
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Surge Current: 60 A 10 ms
• Input Current Limits: 8-11 mA
• China Rohs Regulation: X
• Minimum Switching Voltage: 4 V DC turn-on
• Pollution Degree: 2
• Maximum Voltage Drop: <0.6 V on-state
• Overvoltage Category: III
• Connections - Terminals: screw terminals 1 x 0.3...1 x 1.5 mm squared, AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm squared, AWG 22...AWG 14) output
• Flame Retardance: V0 conforming to UL 94
• Rohs Exemption Information: Yes
• Response Time: 0.6 ms (turn-on) || 0.3 ms (turn-off)
• Product Or Component Type: solid state relay up to 10 A
• Ambient Air Temperature For Operation: -30-80 °C
• Output Voltage: 1...60 V DC
• Resistance: 0.1 Ohm on-state
• Sustainable Offer Status: Green Premium product
• Environmental Disclosure: ENVPEP1307069EN
• Number Of Channels: 1
• Maximum Leakage Current: 0.1 mA off-state
• Solid State Output Type: Mosfet output || DC switching
• Height: 90.3 mm
• Standards: IEC 61000 || IEC 62314 || IEC 60950-1
• Ambient Air Temperature For Storage: -30-100 °C
• Device Short Name: SSM
• Dielectric Strength: 4 kV DC for input/output || 4 kV DC for input or output to case
• Depth: 83.7 mm
• Capacitance Unbalance: 10 pF for input/output
• Mounting Support: symmetrical DIN rail
• Width: 11 mm
• Net Weight: 0.05 kg
• Net Weight: 0.05 kg
• [Uc] Control Circuit Voltage: 4...32 V DC
• Circularity Profile: ENVEOLI1307069EN
• Line Rated Current: 0.25
• Phase: 1 phase
• Absolute Maximum Voltage: 60 V
• Output Switching Mode: DC switching
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Ip Degree Of Protection: IP20
• Local Signalling: for input status LED (green)
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Load Current: 0.0025-6 A
• Range Of Product: Harmony Solid State Relays
