Description

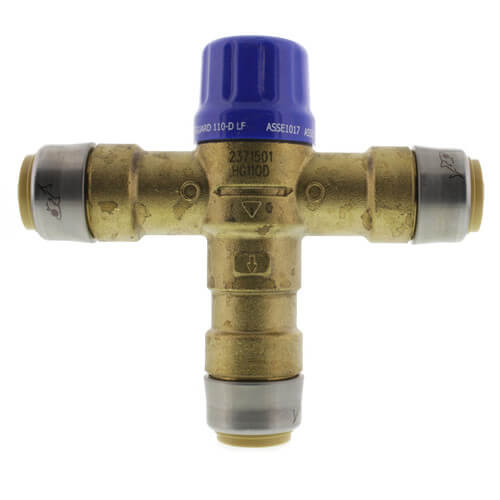

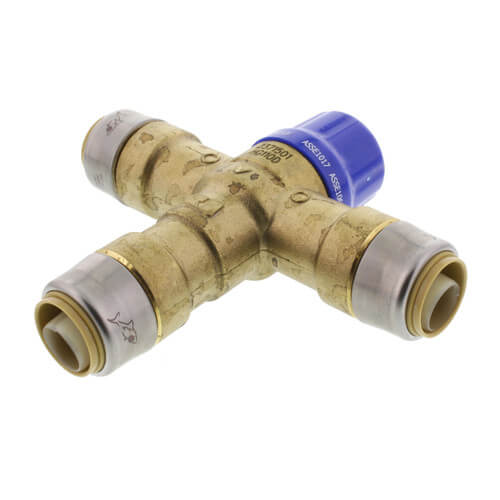

The HG110 D with SharkBite Connections is a triple-listed thermostatic mixing valve that delivers water at a safe 120°F (49°C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140°F (60°C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. The SharkBite connections means that installing the valve Each valve is factory set and locked to a maximum 120°F (49°C). Adj. outlet temperature range: 85-130°F (29-54°C).

Domestic and Commercial hot water distribution. To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories, or bath tubs) or multiple fixtures (multiple sinks or gang shower applications where bather has no access to temperature control).

Features:
  • Certified for distribution and point-of-use applications
  • Allows the water heater to be set at 140°F (60°C) or higher: Greater effective hot water volume yields less chance of Legionella within the cylinder.
  • Every valve is tested for performance prior to shipping: Specify and install with confidence!
  • Robust, low complexity construction: Superior reliability, improved user safety.
  • Adjustable and lockable mechanism: Minimizes unauthorized tampering with valve setting Factory set, locked to maximum 120°F (49°C)
Read more
Specs
Application:
Heating
Point of Source
Size:
3/4"
Material:
Bronze (Body)
Connection Method:
SharkBite (Push-Fit)
Connection Type:
SharkBite (Push-Fit)
Max Flow (GPM):
20
Max Pressure (PSI):
230
×
