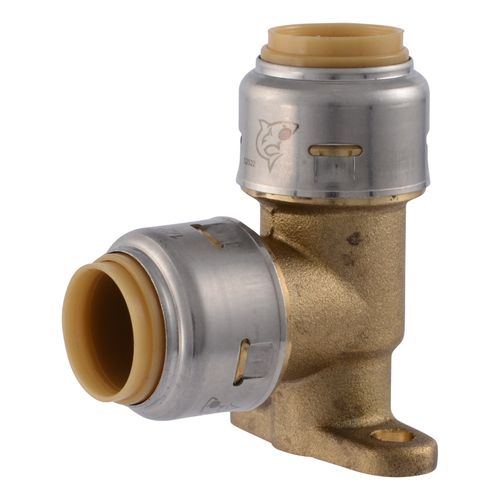

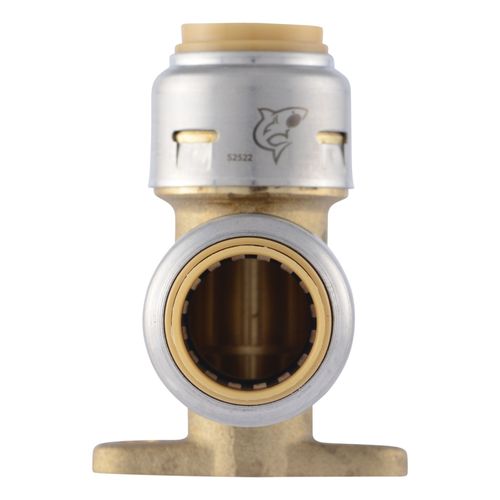

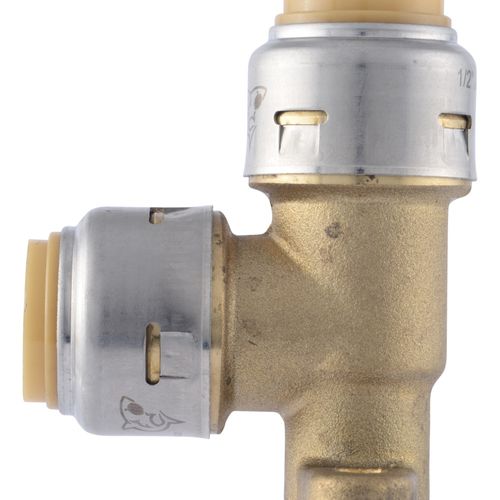

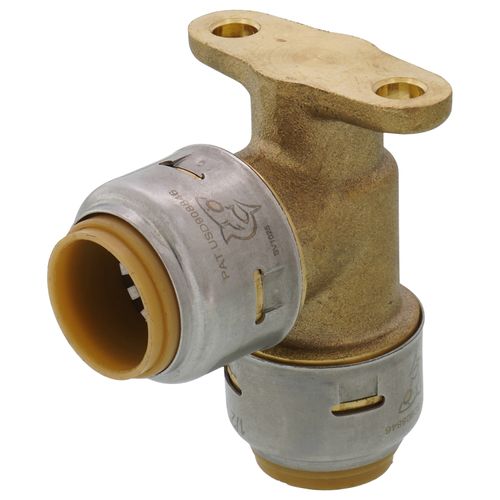

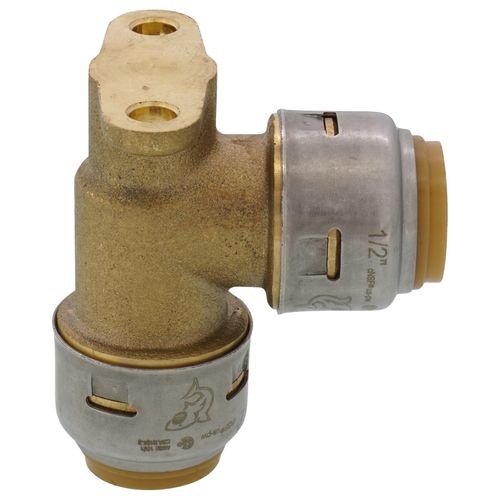

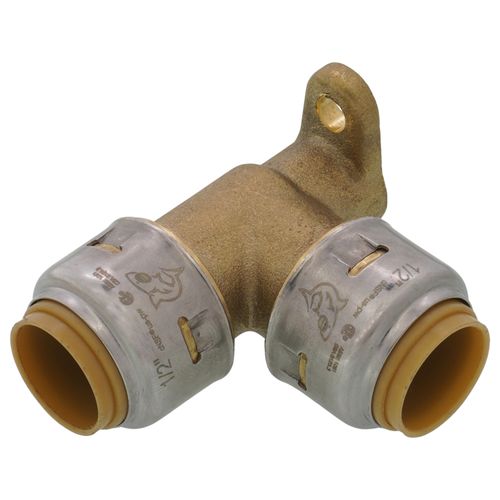

1/2" x 1/2" SharkBite Max Drop Ear Elbow (Lead Free), UR249A
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$10.27 each
BOX UP & SAVE 8%
$56.64 box of 6
$9.44 each
In Stock
Get 31 Thu, Jun 25
Order by today, receive Thursday
MANUALS (2)
This item replaces: UR249
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
Push-Fit x MNPT Connection
Yes
Male Thread Type
Description
–
Replaces UR249
SharkBite Max drop-ear elbow is designed to make a 90-degree connection between PEX, copper, CPVC, PE-RT or HDPE SDR-9 and a MNPT threaded connection. Typically used for installing shower arms and tub spouts. Approved for underground and behind-the-wall applications with no access panels.
Features
SharkBite Max drop-ear elbow is designed to make a 90-degree connection between PEX, copper, CPVC, PE-RT or HDPE SDR-9 and a MNPT threaded connection. Typically used for installing shower arms and tub spouts. Approved for underground and behind-the-wall applications with no access panels.
Features
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion effort, double the burst pressure.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
- No special tools, crimping, soldering or glue required.
- Can be rotated after installation.
- No tube liner required for PEX.
- Rated to 200°F and 250 psi.
- 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
- 5-year warranty when properly installed with HDPE SDR-9.
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
Specs
–
| Connection Type: | Push-Fit x MNPT |
|---|---|
| PEX Size: | 1/2" |
| Insertion Depth: | 15/16" |
| Lead Free: | Yes |
| Thread Type: | Male |
| Size: | 1/2" |
