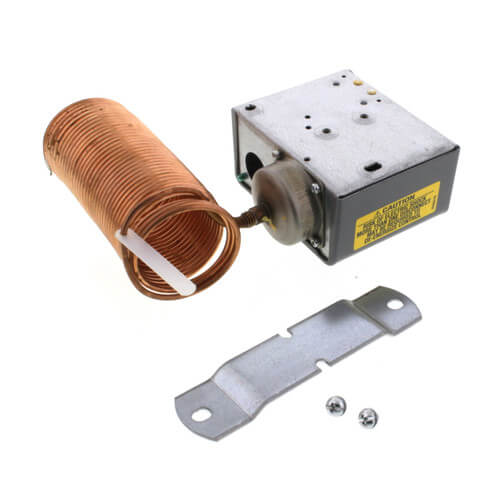

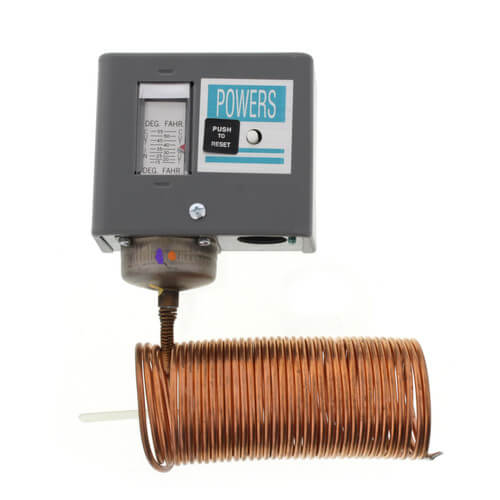

The 134 Electric Low Temperature Detection Thermostat
is a remote bulb instrument with a Single Pole, Double
Throw switch. Any one foot of the capillary element
actuates the thermostat switch, making this control ideal
for the protection of large coils where air stratification
could cause localized freezing conditions.
Applications:
The 134 Electric Low Temperature Detection Thermostats
are ideally suited for detecting potential freeze-up
conditions of heating coils, cooling coils, liquid heating
pipes, and similar applications.
Features:
- Compact and durable construction
- Adjustable concealed, low and high range limit stops
with a fixed differential
- Available with manual or automatic reset
- Electroplated copper capillary tube for sensitivity
and durability
- Switches 120 V or 20 Vac
- Universal mounting bracket included
