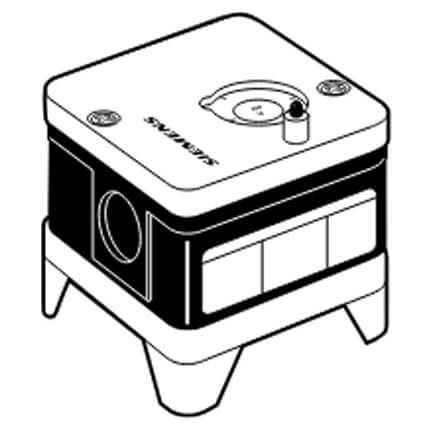

Main product image of Automatic Reset High Pressure Switch (28"-112" W.C.)

Hover image to zoom

Automatic Reset High Pressure Switch (28"-112" W.C.)

Name: Automatic Reset High Pressure Switch (28"-112" W.C.)
Brand: Siemens
SKU: QPH31-280A00
Price: 168.31 USD
Availability: OutOfStock

Brand:

Siemens

SKU:

QPH31-280A00

Rating:

(0)

Q&A:

(0)

Automatic Reset High Pressure Switch (28"-112" W.C.)

Hover image to zoom

QPH31-280A00 has been discontinued

Discontinued January 16, 2025

This product was discontinued by the manufacturer.

MANUALS (1)

Product Overview

Product Highlights

–

6 PSI (15 for 2 second Surge)

Description

–

The QPH31 Series pressure switches break the electrical circuit when the pressure increases above the adjusted value.

Features:

UL listed for USA and Canada, FM approved, ISO 9001 certified; European approved versions available

Adjustable pressure range from 1 to 112 inches water column (WC)

Automatic and manual reset models

Surge protected up to 15 psi

Specs

–

Product Type:	Pressure Switch
Pressure Range:	28" to 112" W.C.
Reset Type:	Automatic
Max Pressure:	6 PSI (15 for 2 second Surge)
Operating Temp Range:	-40 F to 140 F
