QPL31-075A00 has been discontinued
Discontinued January 16, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
6 PSI (15 for 2 second Surge)
Description
–

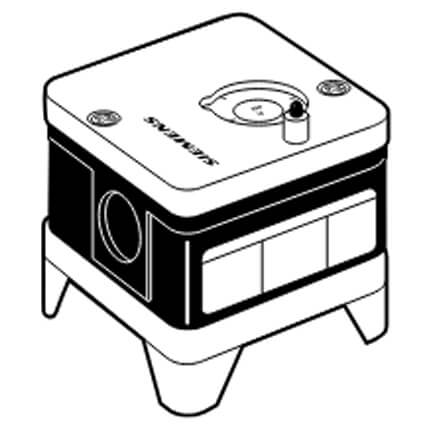

The QPL31 series pressure switches break the electrical circuit when the pressure drops below the adjusted value.
Features:UL listed for USA and Canada, FM approved, ISO 9001 certified; European approved versions available
Adjustable pressure range from 1 to 112 inches water column (WC)
Automatic and manual reset models
Surge protected up to 15 psi
Features:
Specs
–
| Product Type: | Pressure Switch |
|---|---|
| Pressure Range: | 5" to 30" W.C. |
| Reset Type: | Automatic |
| Max Pressure: | 6 PSI (15 for 2 second Surge) |
| Operating Temp Range: | -40 F to 140 F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: Can you tell me the accuracy error of this switch?
Asked by JOSE 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffSiemens doesn't provide us w that info, you would need to contact them with a question that specific.
