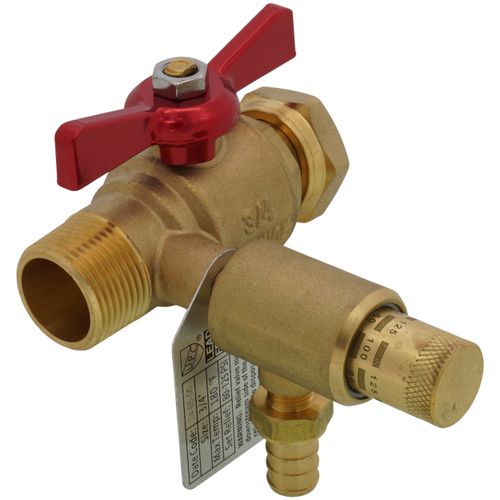

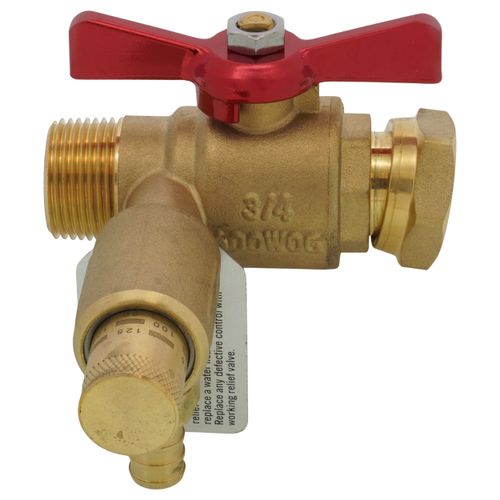

3/4" FIP Swivel Inlet x 3/4" MIP Thread Outlet x 1/2" PEX Crimp Relief Thermal Expansion Relief Valve
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$33.37 each
In Stock
Get 12 Wed, Jul 8
Order by today, receive Wednesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brass
Easy Twist Handle
Yes
3/4"
FIP Swivel
3/4"
Description
–
**Image may not represent actual product.**
Sioux Chief 648 Series Thermal Expansion Relief Valve. 3/4" FIP Swivel Inlet x 3/4" MIP Thread Outlet x 1/2" PEX Crimp Relief Valve.
This product shall be used to provide means for controlling increased pressure caused by thermal expansion in water distribution systems. Thermal expansion relief valve shall discharge water and excess pressure as needed to prevent explosions or other damage to the water heater or surrounding structure. Discharged water shall be directed through an outlet line to the floor drain or water heater pan. Valve connections shall conform to appropriate standards including ASTM fitting end specifications.
Overview:
Brass valve body. Material is C69300 and C46500. Brass is dezincification and SCC resistant, and is compliant with NSF-61 Annex G and California No Lead Plumbing Law.
PTFE seats
Stainless steel springs
EPDM o-rings and relief seat
Easy grip anodized aluminum handle
Maximum Temperature: 180ºF
Features:
Inlet Connection: 3/4" FIP Swivel
Outlet Connection: 3/4" MIP Thread
Thermal Relief Valve Connection: 1/2" PEX Crimp
Sioux Chief 648 Series Thermal Expansion Relief Valve. 3/4" FIP Swivel Inlet x 3/4" MIP Thread Outlet x 1/2" PEX Crimp Relief Valve.
This product shall be used to provide means for controlling increased pressure caused by thermal expansion in water distribution systems. Thermal expansion relief valve shall discharge water and excess pressure as needed to prevent explosions or other damage to the water heater or surrounding structure. Discharged water shall be directed through an outlet line to the floor drain or water heater pan. Valve connections shall conform to appropriate standards including ASTM fitting end specifications.
Overview:
Features:
Specs
–
| Material: | Brass |
|---|---|
| Inlet Size: | 3/4" |
| Inlet Type: | FIP Swivel |
| Outlet Size: | 3/4" |
| Outlet Type: | MIP |
| Features: | Relief Outlet |
| Relief Valve: | 1/2" |
| Connection Method: | PEX Crimp |
| Handle Style: | Easy Twist Handle |
| Max Temp (F): | 180°F |
| Max Pressure (PSI): | 125 |
| Lead Free: | Yes |
