3/4" Expansion PEX Inlet x 3/4" Expansion PEX Outlet x 1/2" Expansion PEX Relief Thermal Expansion Relief Valve
Hover image to zoom

3/4" Expansion PEX Inlet x 3/4" Expansion PEX Outlet x 1/2" Expansion PEX Relief Thermal Expansion Relief Valve

SKU:
648WG3WRV
Rating:
(0)
Q&A:
(0)
3/4" Expansion PEX Inlet x 3/4" Expansion PEX Outlet x 1/2" Expansion PEX Relief Thermal Expansion Relief Valve
Hover image to zoom
$29.59 each
In Stock
In Stock
Get 24 Thu, Jul 18
More Available
Fast Track Logo
Order by 6PM, receive Thursday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Material icon
Brass
Handle Style icon
Easy Twist Handle
Lead Free icon
Yes
Inlet Size icon
3/4"
Inlet Type icon
PEX Expansion
Outlet Size icon
3/4"

Description

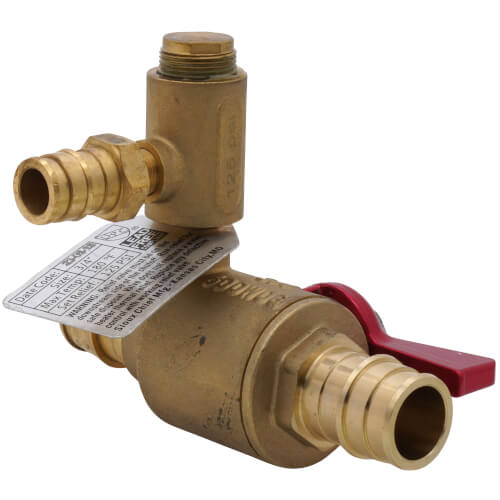

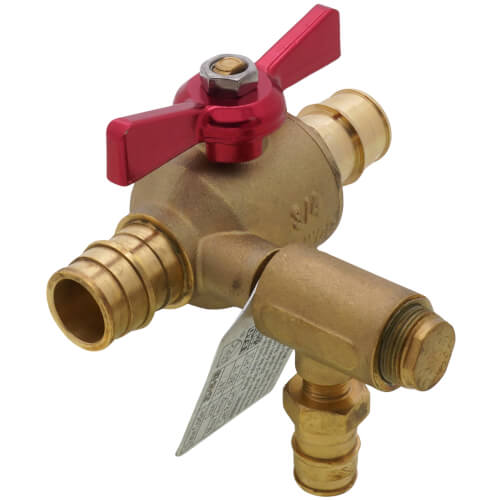

Sioux Chief 648 Series Thermal Expansion Relief Valve. 3/4" Expansion PEX Inlet x 3/4" Expansion PEX Outlet x 1/2" Expansion PEX Relief Valve

This product shall be used to provide means for controlling increased pressure caused by thermal expansion in water distribution systems. Thermal expansion relief valve shall discharge water and excess pressure as needed to prevent explosions or other damage to the water heater or surrounding structure. Discharged water shall be directed through an outlet line to the floor drain or water heater pan. Valve connections shall conform to appropriate standards including ASTM fitting end specifications.

Overview:
  • Brass valve body. Material is C69300 and C46500. Brass is dezincification and SCC resistant, and is compliant with NSF-61 Annex G and California No Lead Plumbing Law.
  • PTFE seats
  • Stainless steel springs
  • EPDM o-rings and relief seat
  • Easy grip anodized aluminum handle
  • Maximum Temperature: 180ºF

    Features:
  • Inlet Connection: 3/4" Expansion PEX
  • Outlet Connection: 3/4" Expansion PEX
  • Thermal Relief Valve Connection: 1/2" Expansion PEX
  • Specs

    Material:

    Brass

    Inlet Size:

    3/4"

    Inlet Type:

    PEX Expansion

    Outlet Size:

    3/4"

    Outlet Type:

    Expansion PEX

    Features:

    Relief Outlet

    Relief Valve:

    1/2"

    Handle Style:

    Easy Twist Handle

    Max Temp (F):

    180°F

    Max Pressure (PSI):

    125

    Lead Free:

    Yes

    Connection Method:

    ProPEX
