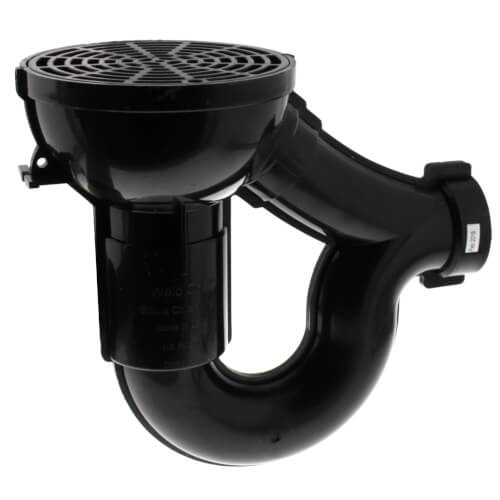

Sioux Chief 800 Series Weld One integral trap floor drain shall be used
where necessary in drainage systems. Drain shall have a 2" Sch. 40 hub
connection which conforms to ASTM D2665 (PVC) or ASTM D2661 (ABS).
Hub connection shall be designed with proper pitch to insure grate remains
level after connection. Drain trap shall be properly sized, and smoothsweep,
to insure full flow and reduce sediment buildup. Drain shall employ a
full 3" trap seal. Drain shall have a factory plugged cleanout access inside
sump area. Strainer shall meet applicable load and flow requirements
for intended use. Trap primer port shall be threaded ½" FIP for knockout
connection
