Description

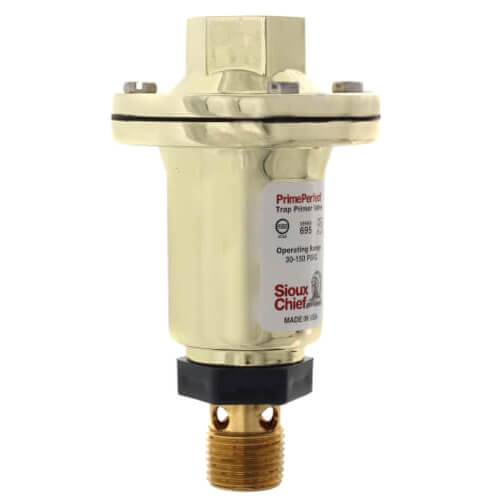

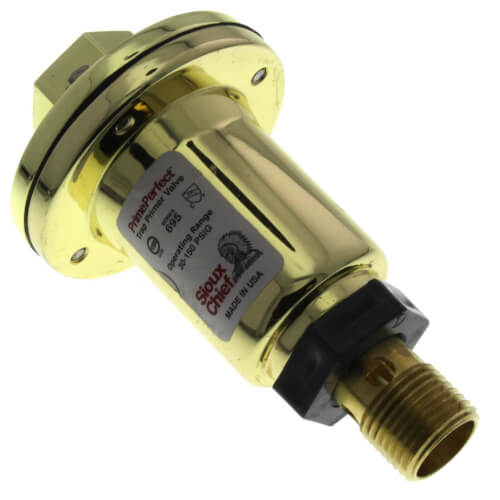

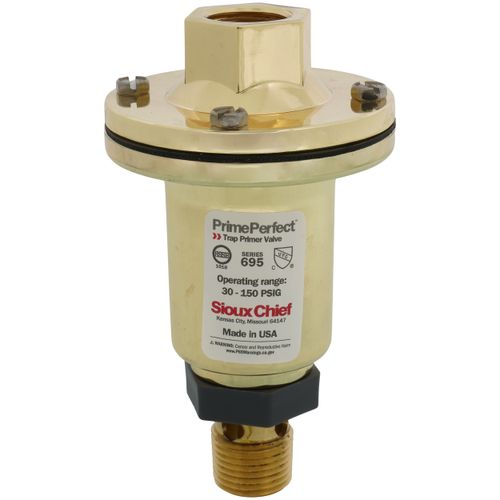

Where replenishment of water in floor drain traps is required, trap primer valves shall be 1/2" FIP inlet x 1/2" MIP outlet, automatic trap primer valves which activate with a 10 PSIG pressure drop between 30-150 PSIG. Water release shall be factory set. Trap primer valve shall have large port openings and a non-corrosive brass finish. Must be UPC/IAPMO listed , and ASSE certified ot the ASSE 1018 standard.

Features:
  • Automatically activates to replenish evaporated water in floor drain traps to prevent the escape of sewer gases
  • Large port openings in debris screen prevent clogging from sediment and debris
  • Activates with a 10 PSIG pressure drop at operating pressure of 30-150 PSIG
  • Water release is factory set 0.25 oz per activation, so no field adjustment is necessary
  • Single trap primer can service up to eight traps using splitter and distributors
  • Accepted by the Oregon State Board of Health, the Army Corps of Engineers, the City of Los Angeles and engineers all of the U.S.
  • Angeles and engineers all over the U.S.
  • UPC/IAPMO listed
  • Certified by the American Society of Sanitary Engineering to the ASSE 1018 Standard
  • Brass-plated cap and body
Read more
Manuals (1)
Specs
Max Pressure (PSIG):
250
Size:
1/2"
×
