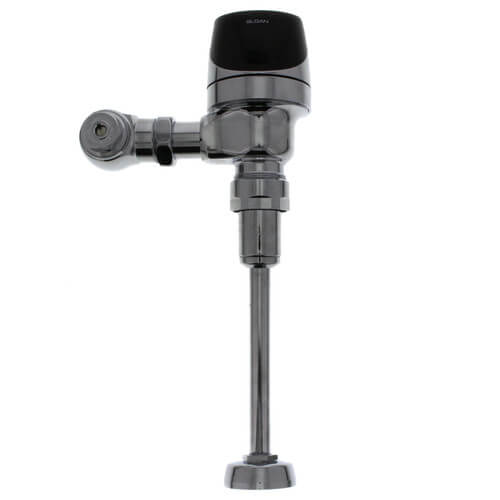

G2 8186-1 Optima Plus (1.0 gpf) Exposed Battery-Powered Urinal Flushometer (for 3/4" Top Spud Urinals)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$533.98 each
In Stock
Get 22 Thu, Mar 23
Order by 4PM, receive Thursday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Chrome Plated
Battery
16-1/2"
Urinal
3 Year Warranty
Description
–
Sloan's Exposed, Battery Powered, Sensor Operated G2 Optima Plus Urinal Flushometer model (for either left or right hand supply) for 3/4" top spud urinals.
Features:
Features:
- Flush Cycle - Low Consumption (1.0 gpf/ 3.8 Lpf)
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic "No Hands" operation
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Latching Solenoid Operator
- Engineered Metal Cover with replaceable Lens Window
- Courtesy Flush Override Button
- (4) Size AA Batteries factory installed
- "Low Battery" flashing LED
- Infrared sensor range adjustment screw
- Initial Set-up Range Indicator Light (first 10 minutes)
- 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
- Free Spinning, Vandal Resistant Stop Cap
- Adjustable Tailpiece
- High Black Pressure Vacuum Breaker Flush Connection w/ One-Piece Bottom Hex Coupling Nut
- Spud Coupling & Flange for 3/4" Top Spud
- Sweat Solder Adapter w/ Cover Tube and Case Wall Flange w/ Set Screw
- High copper, low Zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Flush Accuracy Controlled by CID Technology
- Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine resistance
Specs
–
| Model: | G2 |
|---|---|
| Series: | 8186 |
| Type: | Sensor |
| Product Type: | Flushometer |
| Application: | Plumbing |
| Material: | Chrome Plated |
| Operating Pressure: | 15-100 psi |
| Control Circuit: | Solid State 6 VDC Input |
| Features: | 8 Second Arming Delay 24 Hour Sentinel Flush (after last flush) |
| Power Method: | Battery |
| Battery Type: | (4) Size AA Alkaline |
| Battery Life: | 3 Years @ 4000 Flushes/Month |
| Height: | 16-1/2" |
| Commercial Use: | Yes |
| Gallons Per Flush: | 1 |
| Spud Placement: | Top |
| Spud Size: | 3/4" |
| Installation Type: | Urinal |
| ADA: | Yes |
| Warranty: | 3 Year |
