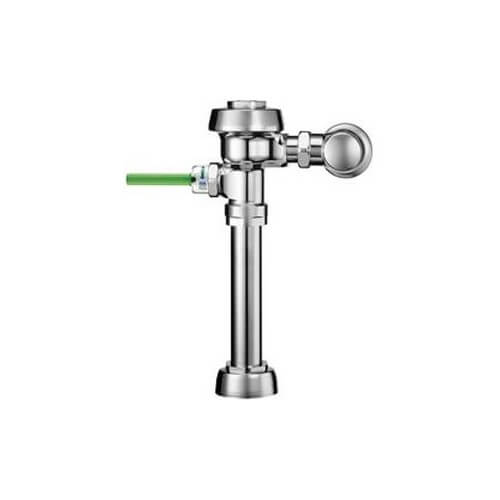

UPPERCUT WES-111 Manual Dual-Flush Exposed Water Closet Flushometer

Note: Due to water conservation regulations regarding maximum flow rate, this product is restricted in some states and local plumbing codes for *NEW* construction. These restrictions may not apply for repairing or replacing existing fixtures. Please check your local code before buying this item.

Sloan's UPPERCUT dual-flush, manual exposed water closet Flushometer provides two water efficient flush options. Push handle DOWN for a regular1.6 gpf flush or tilt the handle UP for a reduced flush of 1.1 gpf.

Features:

• Flush Cycle - High Efficiency (Down 1.6 gpf/ 6.0 Lpf, Up 1.1 gpf/ 4.2 Lpf)
• Reduced water volume by up to 30% when activated upwards
• 11-1/2" Rough-In
• Antimicrobial coating on handle protects against germs
• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Distinctive green ADA compliant metal non-hold-open handle with Triple Seal Handle Packing signifies water conserving device
• 1" I.P.S. screwdriver Bak-Chek Angle Stop
• Adjustable tailpiece
• High back pressure vacuum breaker flush connection w/ one-piece bottom Hex Coupling Nut
• Spud coupling and flange for 1-1/2" top spud
• Sweat solder adapter w/ cover tube and cast set screw wall flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush accuracy controlled by CID Technology
• Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX rubber compound for Chloramine resistance
• Includes (2) adhesive backed metal wall plates etched w/ instructions
