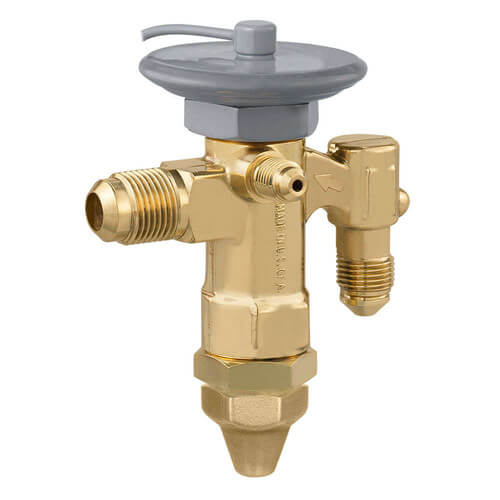

GSE-1/2-ZP 3/8" x 1/2" SAE Thermal Expansion Valve w/ 60" Capillary (1/2 Ton)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$532.58 each
In Stock
Get 1 Mon, Jun 15
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/8"
1/2"
1/2
SAE Connection
R-502, R-408A, R-404A
Description
–
Specifications:
Sporlan Type G valve is a forged brass body, externally adjustable valve with SAE flare connections. The thermostatic element is replaceable, and the inlet connection has a removable 100 mesh strainer. This valve is designed for small refrigeration systems such as refrigerated cases, coolers and freezers. In addition to refrigeration applications, the externally equalized Type G valve may be used for small capacity air conditioning and heat pump units.
- REFRIGERANT TYPE: R-404A
- APPLICATION: Low Temp Refrigeration
- THERMOSTATIC CHARGE: ZP
- NOMINAL CAPACITY (TON): 1/2
- INLET CONNECTION: 3/8" SAE
- OUTLET CONNECTION: 1/2" SAE
- EQUALIZER METHOD: Externally Equalized
- CAPILLARY LENGTH (INCH): 60"
- STRAINER TYPE: 100 Mesh Removeable
- EXTERNAL EQUALIZER: 1/4" SAE FLARE
Sporlan Type G valve is a forged brass body, externally adjustable valve with SAE flare connections. The thermostatic element is replaceable, and the inlet connection has a removable 100 mesh strainer. This valve is designed for small refrigeration systems such as refrigerated cases, coolers and freezers. In addition to refrigeration applications, the externally equalized Type G valve may be used for small capacity air conditioning and heat pump units.
Specs
–
| Application: | Low Temp Refrigeration |
|---|---|
| Inlet Size: | 3/8" |
| Outlet Size: | 1/2" |
| Ton: | 1/2 |
| Capillary Length: | 60" |
| Connection Type: | SAE |
| Refrigerant Type: | R-502 R-408A R-404A |
| Equalizer: | External |
