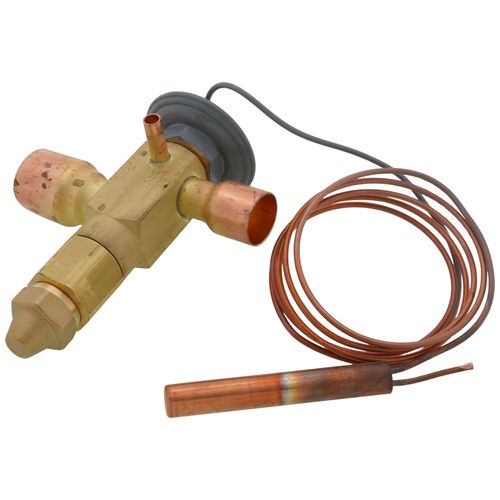

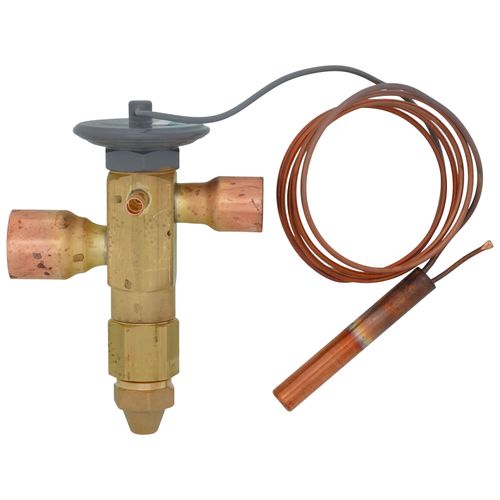

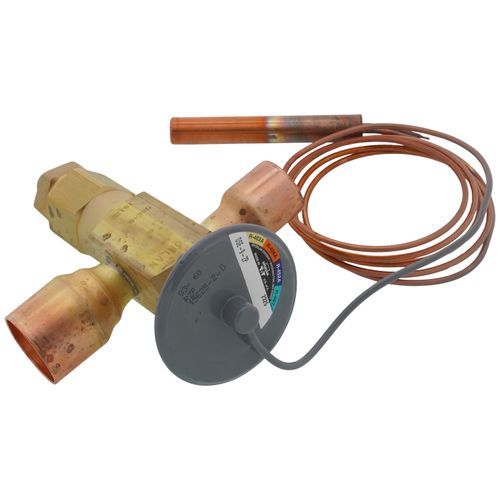

OSE-9-ZP 7/8" x 1-1/8" ODF Thermal Expansion Valve w/ 60" Capillary (9 Ton)
Hover image to zoom

OSE-9-ZP 7/8" x 1-1/8" ODF Thermal Expansion Valve w/ 60" Capillary (9 Ton)

Brand:
Sporlan
SKU:
124224
Rating:
(0)
Q&A:
(0)
OSE-9-ZP 7/8" x 1-1/8" ODF Thermal Expansion Valve w/ 60" Capillary (9 Ton)
Hover image to zoom
$412.70 each
In Stock
In Stock
Get 2 Wed, Mar 6
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Inlet Size icon
7/8"
Outlet Size icon
1-1/8"
Ton icon
9
Connection Type icon
ODF Connection
Refrigerant Type icon
R-404A, R-502, R-408A

Description

Specifications:
  • REFRIGERANT TYPE: R-404A
  • APPLICATION: Low Temp Refrigeration
  • THERMOSTATIC CHARGE: ZP
  • NOMINAL CAPACITY (TON): 9
  • INLET CONNECTION: 7/8" ODF
  • OUTLET CONNECTION: 1-1/8" ODF
  • EVAPORATOR EQUALIZER SIZE (INCH): 1/4" ODF
  • EQUALIZER METHOD: Externally Equalized
  • CAPILLARY LENGTH (INCH): 120"
  • STRAINER TYPE: 12 Mesh Permanent

The Sporlan Type O balance ported thermostatic expansion valves have a brass bar stock body with extended ODF connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. Optional bi-directional feature is available.

Markets:
  • Air Conditioning
  • Refrigeration
  • Transportation
  • Industrial - Food Storage units

Features:
  • Balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation
  • Thermostatic charges available to match system conditions
  • Available with external equalizer
  • Two Body Styles: Design working pressure for Small O is 450 psi (31 bar) and Large O is 425 psi (29 bar)

Applications:
  • Systems with widely varying operating conditions
  • Capacity ranges from 15 to 70 tons R-22 (Two body styles – Small O capacity ranges from 15 to 30 tons and Large O capacity ranges from 40 to 70 tons
  • Air Conditioning – Commercial, Chillers
  • Transportation

Specs

Application:

Low Temp Refrigeration

Inlet Size:

7/8"

Outlet Size:

1-1/8"

Ton:

9

Capillary Length:

60"

Connection Type:

ODF

Refrigerant Type:

R-404A

R-502

R-408A

Equalizer:

External
