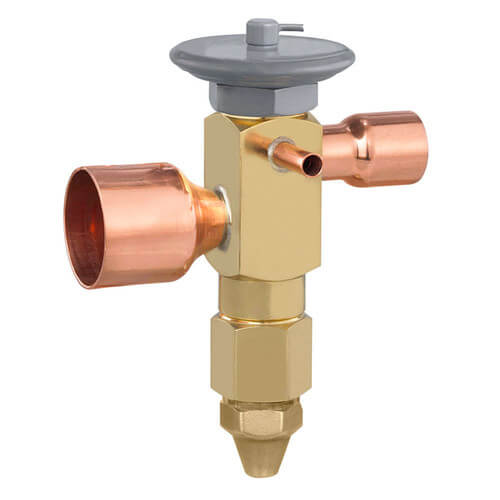

OVE-15-GA 7/8" x 1-1/8" ODF Thermal Expansion Valve w/ 120" Capillary (15 Ton)

Specifications:

• REFRIGERANT TYPE: R-22
• APPLICATION: Air Conditioning
• THERMOSTATIC CHARGE: GA
• NOMINAL CAPACITY (TON): 15
• INLET CONNECTION: 7/8" ODF
• OUTLET CONNECTION: 1-1/8" ODF
• EVAPORATOR EQUALIZER SIZE (INCH): 1/4" ODF
• EQUALIZER METHOD: Externally Equalized
• CAPILLARY LENGTH (INCH): 120"
• STRAINER TYPE: 12 Mesh Permanent

The Sporlan Type O balance ported thermostatic expansion valves have a brass bar stock body with extended ODF connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. Optional bi-directional feature is available.

Markets:

• Air Conditioning
• Refrigeration
• Transportation
• Industrial - Food Storage units

Features:

• Balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation
• Thermostatic charges available to match system conditions
• Available with external equalizer
• Two Body Styles: Design working pressure for Small O is 450 psi (31 bar) and Large O is 425 psi (29 bar)

Applications:

• Systems with widely varying operating conditions
• Capacity ranges from 15 to 70 tons R-22 (Two body styles – Small O capacity ranges from 15 to 30 tons and Large O capacity ranges from 40 to 70 tons
• Air Conditioning – Commercial, Chillers
• Transportation
