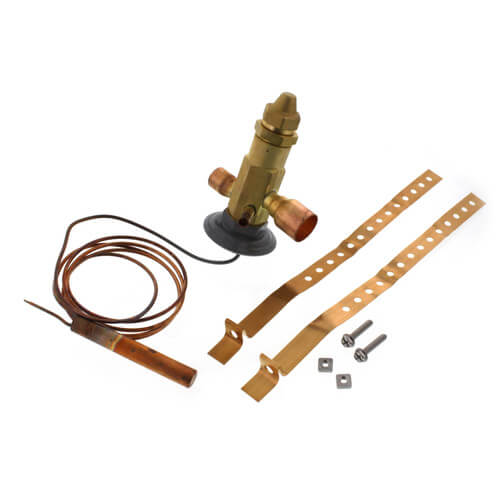

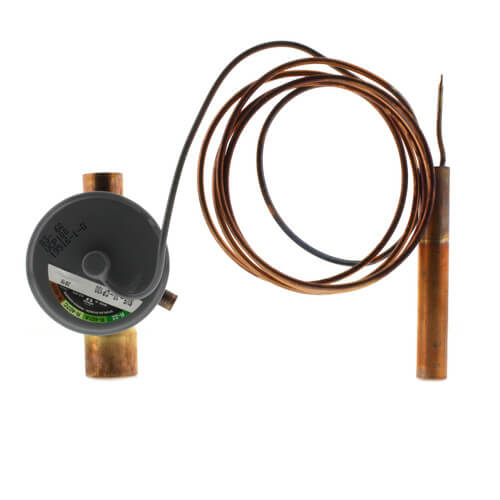

SVE-10-CP100 5/8" x 7/8" ODF Thermal Expansion Valve w/ 60" Capillary (10 Ton)129901 SVE-10-CP100 5/8" x 7/8" ODF Thermal Expansion Valve w/ 60" Capillary (10 Ton)
|3||Thu, Jul 7|
|11||Fri, Jul 8|
Free Shipping This item ships free
Need replacement parts for this unit?
- REFRIGERANT TYPE: R-22
- APPLICATION: Air Conditioning
- THERMOSTATIC CHARGE: CP100
- NOMINAL CAPACITY (TON): 10
- INLET CONNECTION: 5/8" ODF
- OUTLET CONNECTION: 7/8" ODF
- EQUALIZER METHOD: Externally Equalized
- CAPILLARY LENGTH (INCH): 60"
- STRAINER TYPE: 12 Mesh Permanent

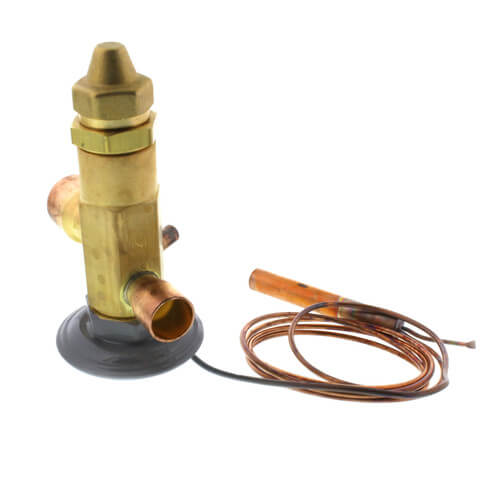

The Sporlan Type S thermostatic expansion valves have a brass bar stock body. The S valve has ODF connections. It is available with adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance.
- Air Conditioning
- Industrial Refrigeration
- Permanent Inlet strainer
- Thermostatic charges available to match system conditions
- Available with internal equalizer or external equalizer
- Design working pressure for the S valves is 450 psi (31 bar)
- Heat Pumps
- Air Conditioning – Residential, Commercial, Chillers
- Refrigeration – Cases, Coolers, Walk in Coolers, Freezers
- Capacity ranges from 2 to 10 tons R-22
