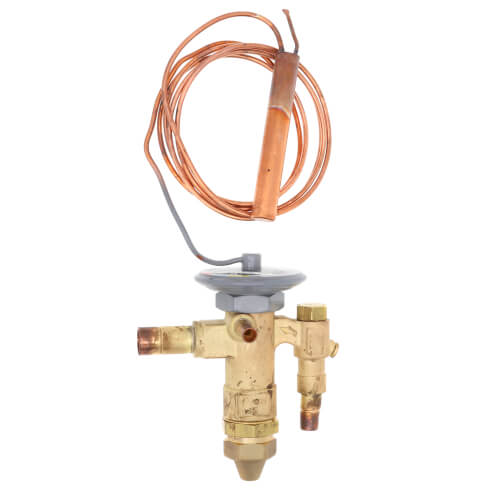

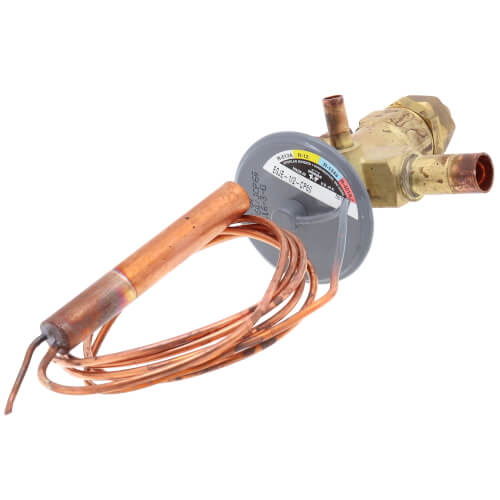

EGJE-1/2-CP60 3/8" x 1/2" ODF Thermal Expansion Valve w/ 60" Capillary (1/2 Ton)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$426.02 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/8"
1/2"
1/2
R-409A, R-134A, R-401A, R-12
ODF Connection
Description
–
Specifications:
Sporlan Type EG valve is a forged brass body, externally adjustable valve with ODF solder connections.
The thermostatic element is replaceable, and the inlet connection has a removable100 mesh strainer which can be cleaned and/or replaced without removing the valve from the line. This valve is designed for small refrigeration systems such as refrigerated cases, coolers and freezers. In addition to refrigeration applications, the externally equalized Type EG valve may be used for small capacity air conditioning and heat pump units.
- REFRIGERANT TYPE: R-134A
- APPLICATION: Air Conditioning
- THERMOSTATIC CHARGE: CP60
- NOMINAL CAPACITY (TON): 1/2
- INLET CONNECTION: 3/8" ODF
- OUTLET CONNECTION: 1/2" ODF
- EQUALIZER METHOD: Externally Equalized
- CAPILLARY LENGTH (INCH): 60"
Sporlan Type EG valve is a forged brass body, externally adjustable valve with ODF solder connections.
The thermostatic element is replaceable, and the inlet connection has a removable100 mesh strainer which can be cleaned and/or replaced without removing the valve from the line. This valve is designed for small refrigeration systems such as refrigerated cases, coolers and freezers. In addition to refrigeration applications, the externally equalized Type EG valve may be used for small capacity air conditioning and heat pump units.
Specs
–
| Application: | Air Conditioning |
|---|---|
| Inlet Size: | 3/8" |
| Outlet Size: | 1/2" |
| Ton: | 1/2 |
| Refrigerant Type: | R-409A R-134A R-401A R-12 |
| Connection Type: | ODF |
| Capillary Length: | 60" |
| Equalizer: | External |
