Description

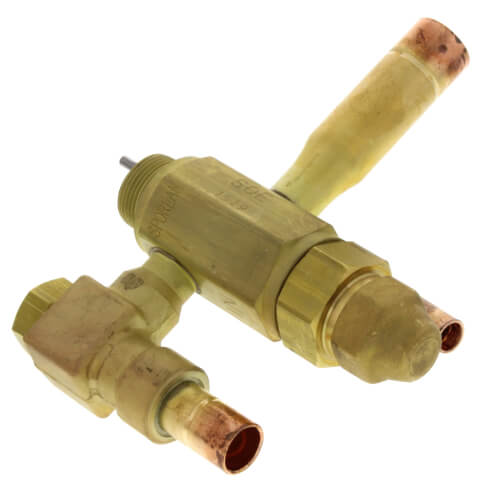

Type SQ same as the Type Q valve except it features
ODF solder connections and a forged brass inlet fitting
with a removable 100 mesh strainer screen which can be
cleaned and/or replaced without removing the valve from
the line. Type SBQ is the same as Type SQ with balanced
port construction and is approved for bi-directional applications.
Markets:
Features:
Applications:
Markets:
- Air Conditioning
- Refrigeration - Food Retail
- Transportation
- Industrial - Food Storage units
Features:
- Replaceable cartridge design.
- Balance port design on BQ Series provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation
- Thermostatic charges available to match system conditions
- Available with external equalizer and internal equalizer
- Design working pressure of 450 psi (31 bar) or 700 psi ( bar). For R-410A only the design working pressure is 700 psi (48.3 bar)
Applications:
- Systems with widely varying operating conditions
- Capacity ranges from 1/8 to 5 ton R-22
- Supermarket cases and rack systems, Food and Beverage units
- Air Conditioning – Residential, Commercial, Chillers
- Transportation – Units on Truck/Trailer, Bus and Vans
