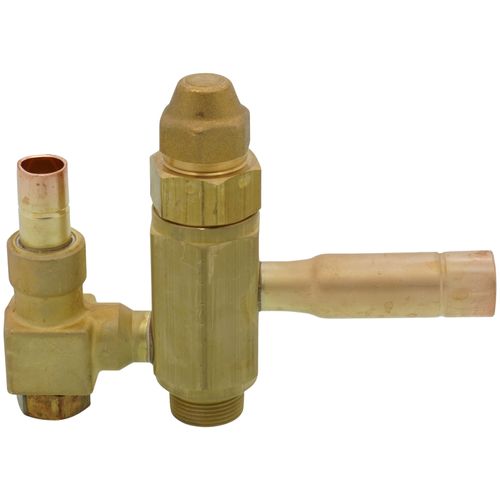

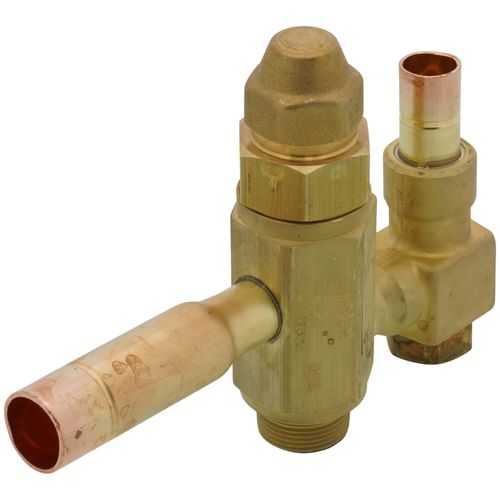

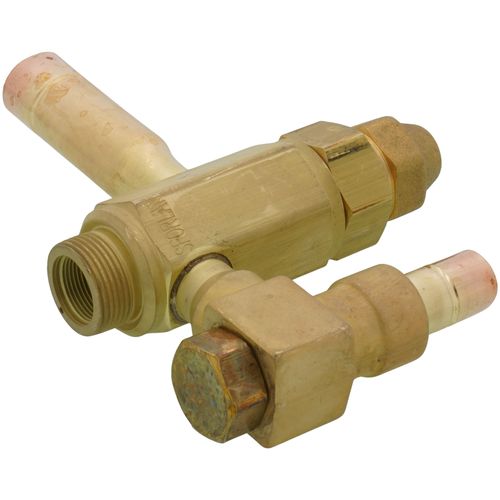

SBQ 3" x 4" ODF Cartridge Style Valve Body168193 SBQ 3" x 4" ODF Cartridge Style Valve Body
Free Shipping On orders over $99
Need replacement parts for this unit?
Q and BQ valves are supplied as three individual component parts: the thermostatic element, the valve body, and the replaceable cartridge or orifice. The interchangeable nature of the Q and BQ family make it ideal for reducing inventory, while increasing valve options – so the right valve is always on hand.
Q and BQ brass body type valves feature Sporlan’s traditional knife edge, metal-to-metal thermostatic element to valve body construction, which ensures a leak-proof joint.
Sporlan’s selective thermostatic charges are specifically designed for low temperature, medium temperature, and air conditioning applications. The elements are manufactured with a large flat diaphragm to reduce diaphragm stresses and provide precise control. The installer is able to select the best possible thermostatic charge for the application because the Q and BQ valve bodies and thermostatic elements are supplied as independent components.
Refrigerant flow through the valve port opposes the pin movement in all Type Q and BQ valves. This provides improved stability at light loads, when the pin modulates to a position close to the port. The liquid flow enters near the top of the valve body, which has a warming effect on the thermostatic element and minimizes the potential for charge migration.
The Type Q and BQ valves are available with flare or sweat connections and all feature adjustable superheat.
- Air Conditioning
- Refrigeration - Food Retail
- Industrial - Food Storage units
- Replaceable cartridge design.
- Balance port design on BQ Series provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation
- Thermostatic charges available to match system conditions
- Available with external equalizer and internal equalizer
- Design working pressure of 450 psi (31 bar) or 700 psi ( bar). For R-410A only the design working pressure is 700 psi (48.3 bar)
- Systems with widely varying operating conditions
- Capacity ranges from 1/8 to 5 ton R-22
- Supermarket cases and rack systems, Food and Beverage units
- Air Conditioning – Residential, Commercial, Chillers
- Transportation – Units on Truck/Trailer, Bus and Vans
