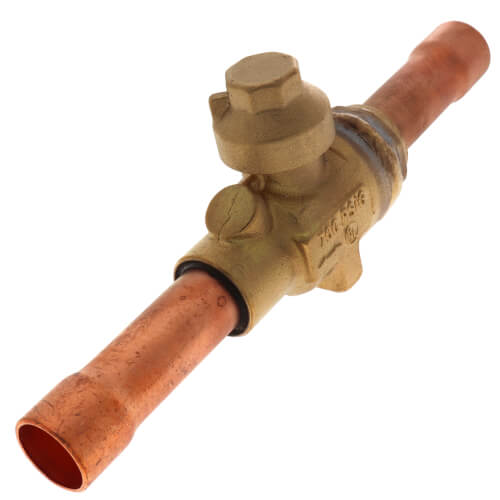

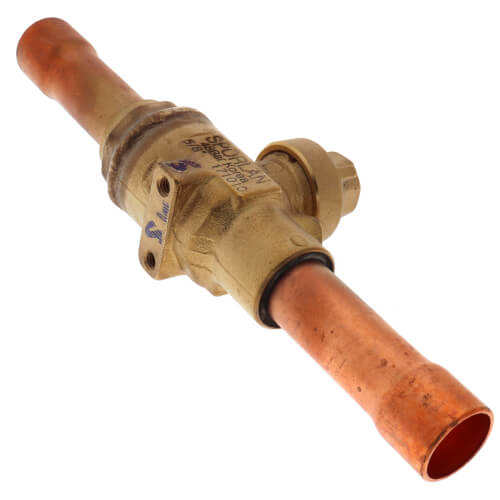

5/8" ODF EBV-1050 Refrigeration & Air Conditioning Ball Valve (13.9 Cv)

The Sporlan Ball Valve is a welded body joint that is factory tested to ensure positive leak-free performance. Dual Teflon seals surrounds the polished, brass ball to prevent leakages. There is an internal relief port design that ensures positive shut off of the valve in either flow direction, even during system evacuation. All Ball valves are bi-directional and may be installed in any position.

Features

• Welded body joint. Factory tested to ensure positive, leak-free performance. Forged brass body construction with extended copper fittings and optional access fittings.
• Full size ports for unrestricted flow on most sizes 1/4” (6 mm) through 2-1/8” (54 mm).
• Dual Teflon seals surround the polished, brass ball to prevent leakage. Stem seal and stem washer provide the primary stem seal. Bottom load stem for safety.
• Stainless steel stop plate ensures fully open to fully closed with a 1/4 turn.
• Ball internal relief port design ensures positive shut-off in either flow direction, even during system evacuation.
• All EBV(T) ball valves are bi-directional and may be installed in any position.
• Full refrigeration service temperature range: -40°F to +325°F (-40°C to +149°C).
• Design working pressure: 700 psig (49 bar).
• U.L. Listed File No. SA13413 (SFJQ)
