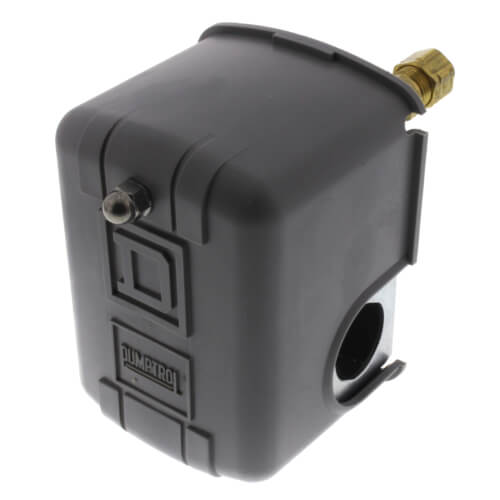

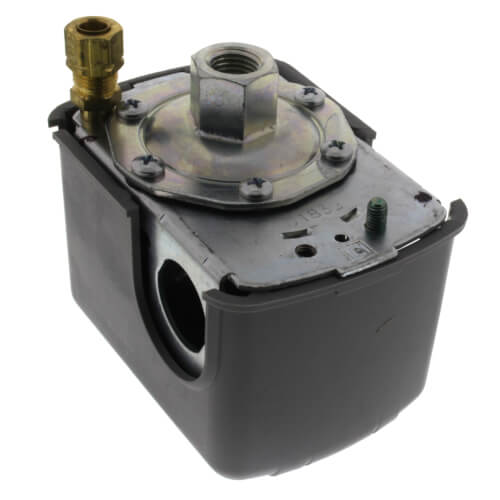

Air Compressor Pressure Switch, DPST, 70-150 PSI, Off at 125 PSI
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$42.61 each
In Stock
Get 10 Tomorrow, Jun 19
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
70 PSI
1/4" Connection
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Air Compressor Pressure Switch, DPST, 40-150 PSI, Off at 125 PSI
- Pressure sensor type - Electromechanical pressure switch
- Controlled fluid - Air (-22...257 °F)
- Adjustable range on rising pressure - 70...150 psi
- Approximate adjustable differential - 30 psi
- Destruction pressure - 220 psi
- Pressure actuator - Diaphragm
- Pressure switch type of operation - Regulation between 2 thresholds
- Scale type - Fixed differential
- Setting - Internal
- Local display - Without
- Contacts type and composition - 2 NC, snap action, DPST-DB, Form YY
- Cable entry number - 2 0.88 in cable entries with 0.84 in across flats UL 508
- Electrical connection - Screw-clamp terminals, clamping capacity: 5.261 mm² / Screw-clamp terminals, clamping capacity: 10 AWG
- Fluid connection type - 0.25 inch NPSF internal conforming to UL 508
- Short circuit protection - 20 A by cartridge fuse, type gG
- Materials in contact with fluid - Nitrile (Buna-N) or equivalent rubber diaphragm / Zinc plated steel or equivalent flange
- Material - Noryl thermoplastic resin or equivalent cover / Polypropylene cover
- Operating position - Any position
Specs
–
| Pressure On/Off Setting (PSI): | 95/125 |
|---|---|
| Switch: | DPST |
| Pressure Range: | 40 to 150 psi |
| Pressure Differential: | 30 psi |
| Min Pressure (PSI): | 70 |
| Max Pressure (PSI): | 150 |
| Connection Size: | 1/4" |
