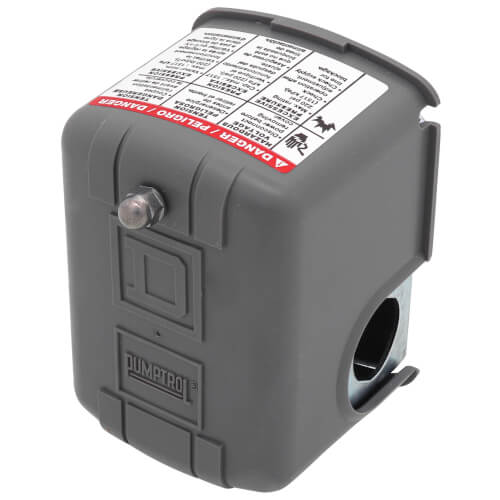

Water Pump Pressure Switch, 5/21 PSI, DPST

Name: Water Pump Pressure Switch, 5/21 PSI, DPST
Brand: Square D
SKU: 9013FSG2J15
Price: 24.16 USD
Availability: OutOfStock

Brand:

SKU:

9013FSG2J15

Rating:

Q&A:

Hover image to zoom

9013FSG2J15 has been discontinued

Discontinued January 16, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Direct Replacement:

Water Pump Pressure Switch, 20/40 PSI, DPST

Brand:

SKU:9013FSG2J20

(5)

Order by today, receive 227 by Tuesday

–

21 MAX PSI

5 PSI

–

Features:

Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Fresh water -22…257 °F (-30…125 °C))
Adjustable range on rising pressure: 20…65 psi (137.90…448.16 kPa)
Approximate adjustable differential: 15…30 psi (103.42…206.84 kPa)
Destruction pressure: 220 psi (1516.85 kPa)
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 2 0.88 in (22.35 mm) cable entries with 0.84 in across flats UL 508
Electrical connection: Screw-clamp terminals 10 AWG; Screw-clamp terminals 5.261 mm2
Fluid connection type: 0.25 inch NPSF internal UL 508
Short-circuit protection: 20 A cartridge fuse gG
Materials in contact with fluid: Zinc plated steel or equivalent flange; Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene Cover; Noryl thermoplastic resin or equivalent Cover
Operating position: Any position
Motor Power kW: 1.5 kW 2 hp)230 V AC, 1 phase 1.1 kW 1.5 hp)115 V AC, 1 phase 1.5 kW 2 hp)115 V AC, 3 phase 2.2 kW 3 hp)230 V AC, 3 phase 0.75 kW 1 hp)460 V AC, 3 phase 0.75 kW 1 hp)575 V AC, 3 phase
Electrical durability: 100000 cycles 10 cyc/mn
Mechanical Durability: 300000 cycles
Terminal Block Type: 4 Terminals
Maximum Operating Rate: 10 cyc/mn

–
