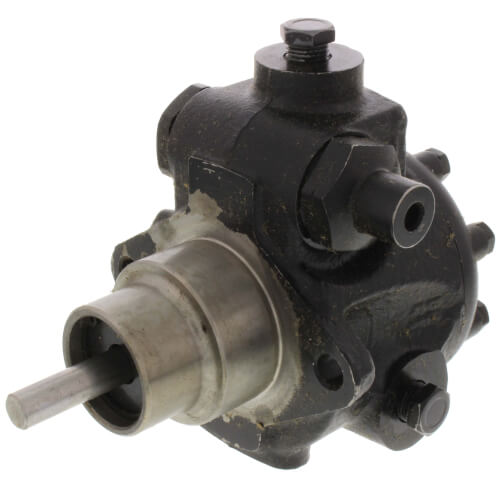

Type J Oil Pump (Clockwise Rotation, Right Hand Nozzle, 100 psi, 1725 or 3450 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$340.43 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (4)
This item replaces: J4PAB1000G, J4PA-B1000G
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1725, 3450 RPM
100 MAX PSI
R.H.
Description
–
The SUNTEC J oil pump is for medium capacity oil burners from 400 to
3000kW. It incorporates a pressure regulating valve and is available with or without cut-off function.
The gear set draws oil from the tank through the built-in filter and transfers it to the valve that regulates the oil pressure to the nozzle line. All oil that does not go through the nozzle line will be dumped through the valve back to the return line in two pipe installation or, if it is a one-pipe installation, back to the suction port in the gear-set. In that case, the by-pass plug must be removed from the return port and the return port sealed by steel plug and washer.
The gear set draws oil from the tank through the built-in filter and transfers it to the valve that regulates the oil pressure to the nozzle line. All oil that does not go through the nozzle line will be dumped through the valve back to the return line in two pipe installation or, if it is a one-pipe installation, back to the suction port in the gear-set. In that case, the by-pass plug must be removed from the return port and the return port sealed by steel plug and washer.
Specs
–
| Flow Rate (GPH): | 54 22 |
|---|---|
| Type: | 1 Stage Oil Pump |
| Rotation: | R.H. |
| Nozzle Location: | R.H. |
| Max Pressure (PSI): | 100 |
| Application: | Heating |
| RPM: | 1725 3450 |
