Description
Overview

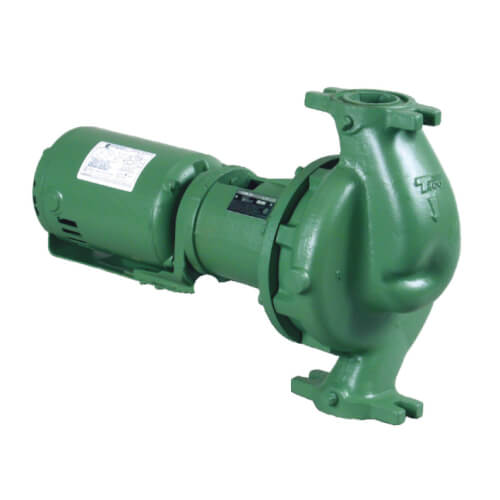

Taco 1600 Series In-Line Pumps combine the ultimate in reliability with ease of installation and maintenance for heating, air conditioning, pressure boosting, cooling water transfer and water supply applications. Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The exclusive 1600 cool bearing cartridge design isolates the bearing from the effects of system temperatures to greatly extend bearing life. A standard bearing design also means that a single bearing cartridge can be used to service the entire line, making servicing a snap. Taco 1600 Series pumps are available in 15 models ranging in performance capacity from 10 GPM to 235 GPM with head capacities up to 68 ft.

Features & Benefits
  • A rugged casing design, featuring a maximum operating pressure of 175psi and a maximum operating temperature of 300º F
  • Cartridge Assembly, extending the bearing life with permanently sealed greased lubricated ball bearings
  • Pressure Tappings, allowing for differential pressure readings to be taken across the pump
  • One Piece Enclosed Impeller, assures long life and high pump efficiencies
  • Cupro-Nickel Shaft Sleeve - Non corrosive shaft sleeve protects the shaft by preventing contact between the shaft and system fluid, eliminating the need for more expensive corrosion resistant shaft materials
  • Accepts standard mechanical seal for maximum flexibility of seal choice
  • Flexible Coupler - absorbs shock, vibration and misalignment that could be transmitted to the cartridge and motor bearings while also isolating and preventing any motor related noise or vibration from being transmitted
  • Resilient Mounted Motor for quiet, reliable, vibration free operation
  • All 1600 Series pumps are factory tested and built in accordance with Hydraulic Institute Standards
Hide Description
Specs
Material:

Cast Iron

Application:

Heating

Flow Range (GPM):

0-70

Max Flow (GPM):

70

Max Head (Ft):

23

Head Range (ft.):

0-23

RPM:

1750

Horse Power:

1/3

Connection Size:

1-1/2"

Max Pressure (PSI):

175

Hertz:

60

Phase:

1

Voltage:

115v

Connection Type:

Flanged x Flanged

Type:

Pump

Max Temp (F):

250°F

Warranty:

1 Year

×
