$575.66 each
In Stock
Get 1 Wed, Jun 10
Order by today, receive Wednesday
Size:
3/4"
Body Pattern:
3-Way
Connection Type:
Union Sweat
Features:
Setpoint
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Union Sweat Connection
3/4"
5.8 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–

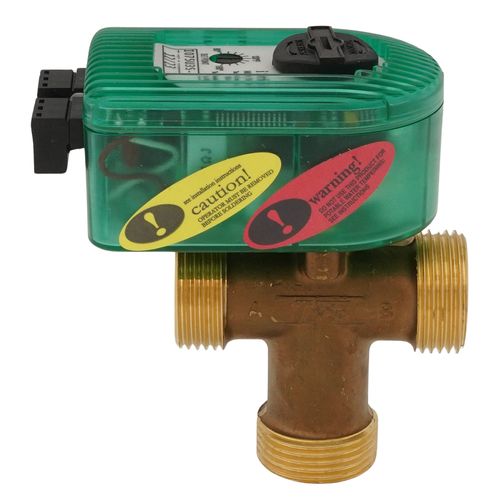

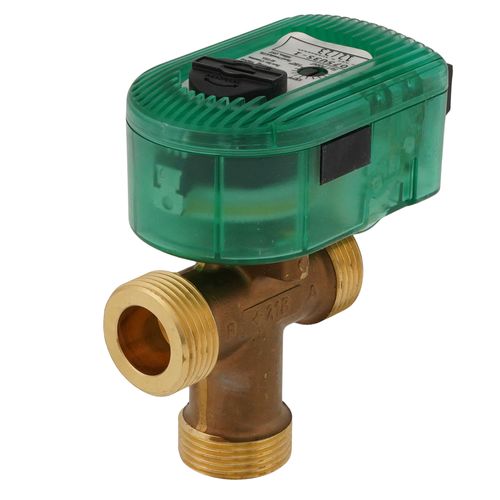

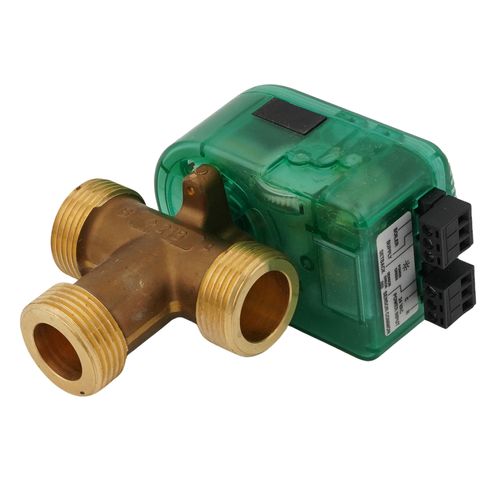

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
Specs
–
| Type: | Setpoint |
|---|---|
| Body Pattern: | 3-Way |
| Flow Capacity (Cv): | 5.8 |
| Connection Type: | Union Sweat |
| Size: | 3/4" |
| Features: | Setpoint |
| Connection Method: | Sweat |
| Application: | Heating |
| Max Pressure (PSI): | 125 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4 out of 2 reviews
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Great Product
Great product for multiple heating zones as long as your plumber installs it correctly! Two of my radiant heating zones were installed backwards for 6 years before I realized it! I easily popped it off and turned them around. What a difference, now when I set my thermostat to 72 degrees the room temperature stays there. Before when the thermistor supply sensor hit its maximum temperature of 130 degrees the mixing value would turn in the wrong direction and my radiant heat pex tubes kept getting hotter and hotter until the thermostat in the room told the circulating pump to turn off! When I was on vacation the batteries in the room thermostat leaked and got stuck calling for heat for quite a while. When I finally got home the downstairs radiant zone got up to 85 degrees and the pex tubes were pegged at 160 degrees! The only thing that save it was these pex tubes were the bigger size for concrete slabs. Stupid Arlington, MA plumber! The electrical wires that plug into the side need to be on the same side as the supply from the boiler side and NOT the boiler return side.
Brian
Belmont, MA
7 years ago
Was this review helpful to you?
outdoor reset valve
Love this product when it works. I have had failures too often but when it works, it regulates temperature well. Use it with hydro air, high velocity air, etc.
burnie
Ipswich MA
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: What are the 24v connections are common, open & close? I have a frogs 1720 radiant floor heating control do you know if this is compatible. Thanks
Asked by Dan 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Dan, thanks for writing in. Please see page 5 of the install manual for wiring information in regards to this valve actuator - https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Taco-I100U3S-1-Install-Instructions.pdf
