$613.03 each
Backorder
Size:
1"
Body Pattern:
3-Way
Connection Type:
C x C
Features:
Setpoint
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
1"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light

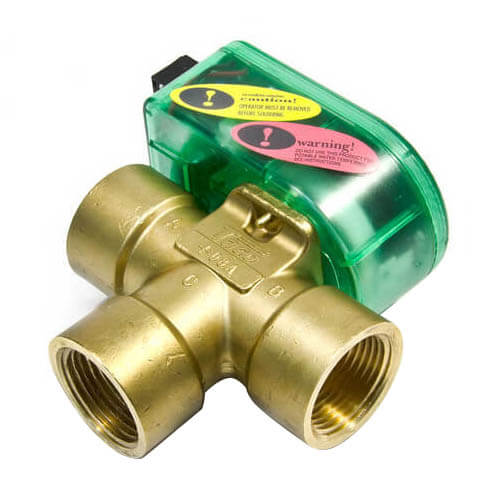

**Image is of the NPT Female version**
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
**Image is of the NPT Female version**
Specs
–
| Type: | Setpoint |
|---|---|
| Flow Capacity (Cv): | 3 |
| Body Pattern: | 3-Way |
| Connection Type: | C x C |
| Features: | Setpoint |
| Connection Method: | Sweat |
| Size: | 1" |
| Application: | Heating |
| Max Pressure (PSI): | 125 |
| Min Temp (F): | 85°F |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
