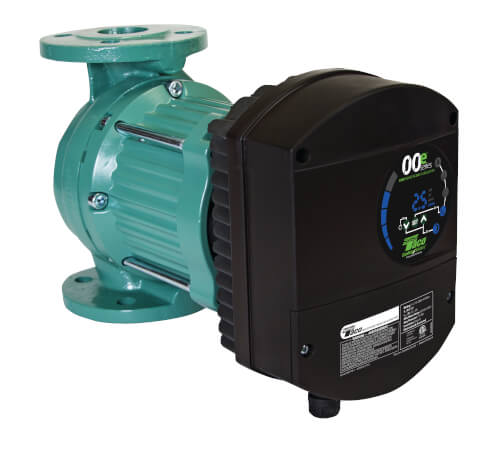

Main product image of Viridian High Efficiency Circulator w/ 2-1/2" Flange (0.054 to 1.496 HP, 200-240V)

Hover image to zoom

Viridian High Efficiency Circulator w/ 2-1/2" Flange (0.054 to 1.496 HP, 200-240V)

Name: Viridian High Efficiency Circulator w/ 2-1/2" Flange (0.054 to 1.496 HP, 200-240V)
Brand: Taco
SKU: VR25-3
Price: 3885.7 USD
Availability: OutOfStock

Brand:

Taco

SKU:

VR25-3

Rating:

(0)

Q&A:

(0)

Viridian High Efficiency Circulator w/ 2-1/2" Flange (0.054 to 1.496 HP, 200-240V)

Hover image to zoom

VR25-3 has been discontinued

Discontinued September 1, 2022

This product was discontinued by the manufacturer.

This item replaces: VR25-2

Replacement Parts

View All

Product Highlights

–

240v, 200v

0.054 to 1.496 HP

1 Year Warranty

Flanged x Flanged Connection

315 MAX GPM

175 MAX PSI

Description

–

The Taco Viridian is a web-enabled, high efficiency, wet rotor, variable speed commercial pump product line for chilled and hot water applications. All settings and pump access can be done over an internet connection making installation, setup and service easy. The ECM motor saves up to 80% of the electrical energy compared with conventional pumps and its multiple operating modes fit most applications.

Specifications:

Max. Operating Pressure: 175 PSI (12 bar)
Water Temperature Range: 14F - 230F (-10 - 104C)
Ambient Operation Temperature Range: 32F - 104F (0- 40C)
Designed for closed loop heating and cooling systems pumping water or a water/glycol mixture

Specs

–

Application:	Commercial
Type:	Pump
Horse Power:	0.054 to 1.496
Connection Size:	2-1/2"
Material:	Cast Iron
Amperage:	4.8
Voltage:	240v 200v
Max Pressure (PSI):	175
Connection Type:	Flanged x Flanged
Max Flow (GPM):	315
Flow Range (GPM):	0-315
Max Head (Ft):	45.54
Head Range (ft.):	0-45.54
Phase:	1
RPM:	3000
Temperature Range (F):	14°F - 230°F
Speeds:	Variable
Warranty:	1 Year
