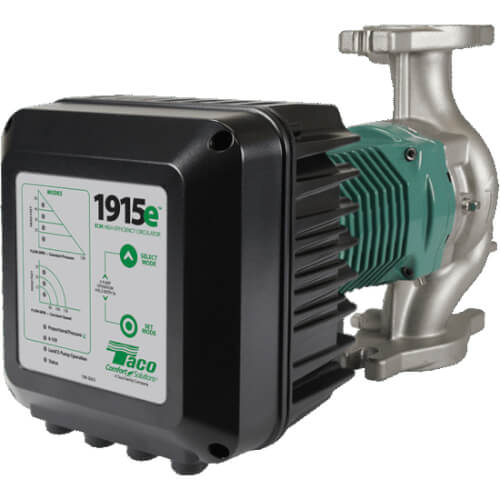

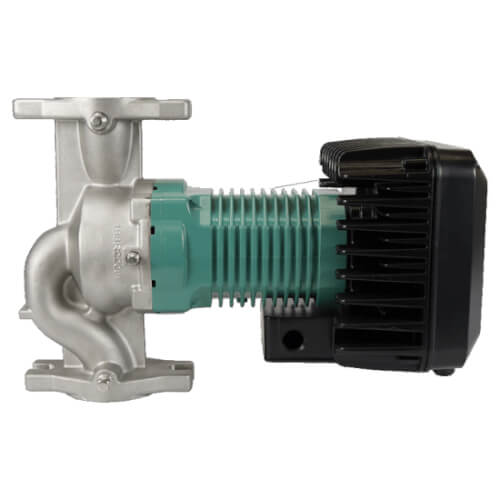

1915e-SF ECM High-Efficiency Circulator Stainless Steel Pump (200/240V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VR65120-CB1-FS2A00 has been discontinued
Discontinued January 28, 2021
This product was discontinued by the manufacturer.
MANUALS (3)
Product Highlights
–
200-240v
3/4 HP
1 Year Warranty
Flanged x Flanged Connection
120 MAX GPM
175 MAX PSI
Description
–
The ECM 1915e is a self-sensing, close coupled, mechanically sealed in-line pump that exceeds industry and efficiency standards with an advanced hydraulic design. It features a high-efficiency volute, permanent magnet motor with ECM technology and integrated frequency drive. Simple yet versatile control options include constant pressure, constant speed, proportional pressure, 0-10Vdc and parallel pump alternation. These standard features combined with the intuitive user interface allow for quick start-ups achieving optimum system efficiency and maximum comfort. The 1915e is available in Stainless Steel, NSF Commercial Hot Certified for DHW applications.
Product Features
Product Features
- Easy-to-program pump interface
- High-efficiency ECM motor uses up to 85% less electricity
- Constant speed, constant pressure, or proportional pressure modes
- BMS 0-10V
- 2-pump operation
Specs
–
| Shutoff Head (ft.): | 65' |
|---|---|
| Application: | Commercial |
| Type: | Pump |
| Connection Type: | Flanged x Flanged |
| Material: | Stainless Steel |
| Amperage: | 3.8 |
| Horse Power: | 3/4 |
| Max Pressure (PSI): | 175 |
| Voltage: | 200-240v |
| Max Flow (GPM): | 120 |
| Phase: | 1 |
| Speeds: | Variable |
| Warranty: | 1 Year |
