$265.50 each
In Stock
Get 1 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5.5" Height
2-1/4" Depth
36°F Min Temp
122°F Max Temp
36°F - 122°F
24V
Description
–
Overview:

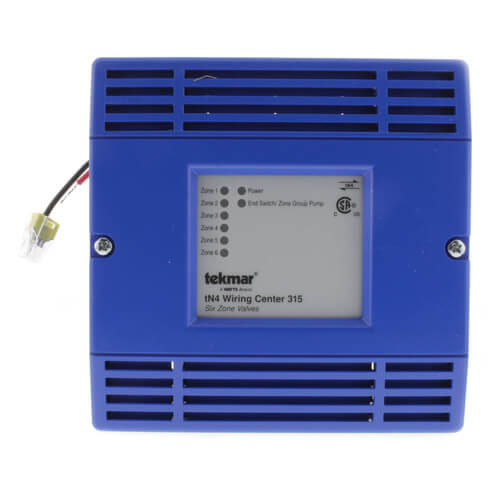

The tekmarNet® 4 Wiring Center 315 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This control energizes up to 6 zone valves. It is capable of providing power for up to 6 tekmarNet®4, or stand alone thermostats, and energizing their respective 24 V (ac) zones, as well as providing an end switch closure to enable an external device such as a boiler.
Features:
The tekmarNet® 4 Wiring Center 315 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This control energizes up to 6 zone valves. It is capable of providing power for up to 6 tekmarNet®4, or stand alone thermostats, and energizing their respective 24 V (ac) zones, as well as providing an end switch closure to enable an external device such as a boiler.
Features:
- Six 24 V (ac) powered zone outputs
- For use with tekmarNet 4 thermostats
- tN4expansion terminals
- Isolated end switch
- External diagnostic LEDs
- CSA C US Certified for use in USA and Canada
Specs
–
| Power Supply: | 24 V (ac) ± 10%, 60 HZ, 98 VA, Class 2 |
|---|---|
| Ambient Conditions: | Indoor use only, 32 to 122°F (0 to 50°C). RH 90% non-condensing |
| Height (Inches): | 5.5" |
| Width: | 5-1/2" |
| Depth (Inches): | 2-1/4" |
| Min Temp (F): | 36°F |
| Max Temp (F): | 122°F |
| Temperature Range (F): | 36°F - 122°F |
| Voltage: | 24V |
| Application: | Zoning |
| Type: | Wiring Center |
| Relays: | 24 V (ac) 2 A |
| Features: | tN4 Communication Compatible |
| Enclosure Type: | Blue PC+ABS plastic, NEMA type 1 |
| Color: | Blue |
| Weight (lbs): | 1.41 lbs |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Q&A
1 Question1 Question
Q: what is the kind of valves showed on the installation menu
Asked by emily 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe installation manual shows a general image of zone valves, it is not a specific valve pictured.
