Description

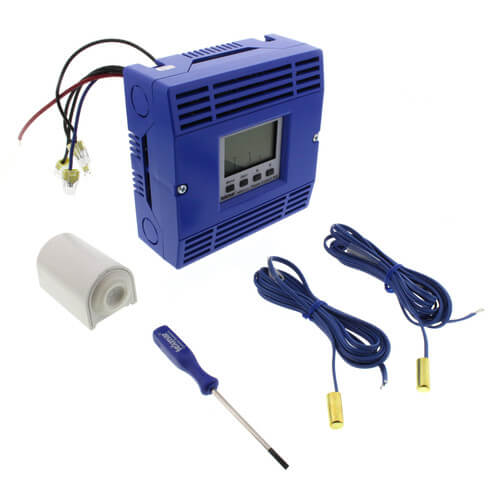

The House Control 402 is designed to operate as part of a complete hydronic heating system with tekmarNet®2 (tN2) thermostats. It can provide operation of two outdoor reset water temperatures in addition to Domestic Hot Water and Setpoint capabilities. It is easy to add more zones, add schedules or other convenient accessories through the use of the tekmarNet®4 (tN4) Expansion terminals.
Features:
- Enclosure: O-Enclosure, blue PC+ABS UL94-5VA plastic
- Approvals: CSA C US, meets ICES & FCC regulations for EMI / RFI
- Ambient Conditions: Indoor use only, 32 to 104°F (0 to 40°C), RH 90% Non-condensing
- Power Supply: 24 V (ac) ±10% 60 Hz, 100 VA max, Class 2
- Control Load: 2 VA
- Zone Valve/Floating Action Load: d24 V (ac) 2 A, maximum combined current (zones 1 to 4): 89 VA (3.7 A)
- Boiler Relay: 24 V (ac) 5 A
- Boiler System Pump Relay: 115 V (ac) 5 A, 1/6 HP
- Mix System Pump Relay: 115 V (ac) 5 A, 1/6 HP
- DHW Pump Relay: 115 V (ac) 5 A, 1/6 HP
- Variable Speed Pump Relay: 115 V (ac) 5 A, 2.0 A
- Pump Power: 115 V (ac) 12 A max
- Setpoint and DHW Calls: Short, 0 - 32 V (ac)
- Boil/Mix Modulating Output: t0 - 10 V (dc), 3 kohm minimum load impedance
Specs
| Ambient Conditions: | Indoor use only 32 to 104°F < 90% RH non-condensing |
|---|---|
| Height (Inches): | 5.5" |
| Width: | 5-1/2" |
| Depth (Inches): | 2-1/4" |
| Enclosure Type: | NEMA-1 |
| Voltage: | 24V |
| Boiler Relay: | 24 V (ac) 5 A |
| Boiler System Pump Relay: | 115 V (ac) 5 A 1/6 HP |
| DHW Pump Relay: | 115 V (ac) 5 A 1/6 HP |
| Setpoint: | Short. 0 - 32 V (ac) |
| Output: | 0 - 10 V (dc) 3K ohms min load impedance |
| Weight (lbs): | 1.37 lbs |
| Power Supply: | 24V (ac) |
| Zone Valve Load: | max combined current (zones 1 to 4): 3.7 A 24 V (ac) 2 A |
| Sensors: | NTC Thermistor, 10 k ohm @ 77°F |
| Includes: | 070 Sensor (2) 082 Sensors |
| Pump Power: | 115 V (ac) 12 A max |
| Application: | HVAC |
| Type: | House Control |
