$611.50 each
In Stock
Order by today, receive Friday
MANUALS (2)
This item replaces: 741
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brass
Electrically limited to 90° shaft rotation
Description
–

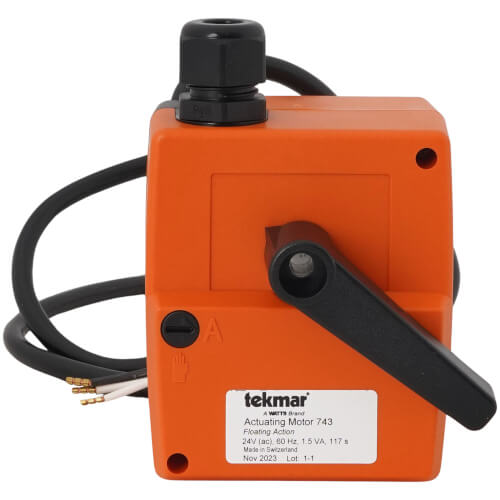

The Actuating Motor 743 is a 24 V floating action actuator designed to operate all Tekmar brass mixing valves (710 to 724). It receives a 24 V open or close signal, which causes the motor to open or close the valve. It provides 10 N.m (88 in.lbs) of torque over a 90 degree rotation. This product rotates its output shaft whenever 24 V (ac) is applied between either the counter clockwise or clockwise terminals and the Com terminal. It is compatible with any control having a 24 V (ac) floating output.
Product Features
Product Features
- 117 second open or close time at 60 Hz
- Electrically limited to 90 degrees shaft rotation
- 10 N.m (88 in.lbs) of torque
- t is compatible with any control having a 24 V (ac) floating output
- Designed to operate all Tekmar brass mixing valves
Specs
–
| Ambient Conditions: | Indoor Use Only |
|---|---|
| Material: | Brass |
| Application: | Heating |
| Rotation: | Electrically limited to 90° shaft rotation |
| Type: | Actuator |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-1 of 1 reviews
Noticeable gas savings
Installed this actuating motor on a Tekmar 4 way mixing valve to control the supply temp to 5500 sq ft of heated radiant floor. The house has Kitek tubbing (but not the high zinc fittings thankfully) and wanted the tubing to last another 20+ years by controlling the temp swings. The valve, actuator and controller work flawlessly at keeping the supply temp to zones between 100 and 112 deg and best of all the gas bill has been cut by 1/3 to 1/2. Didn't expect that kind of savings.
Warren
Santa Fe, NM
1 months ago
