741 has been discontinued
Discontinued March 31, 2023
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Brass
Electrically limited to 90° shaft rotation
Description
–

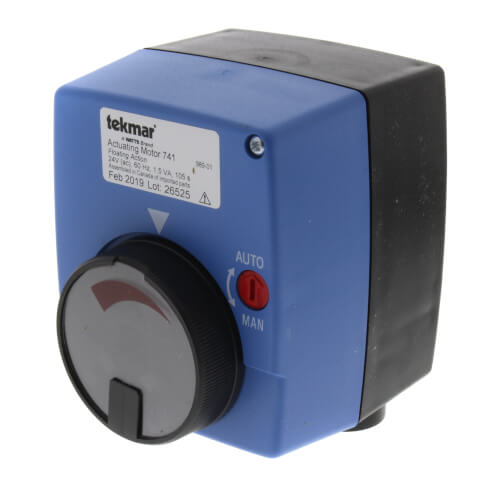

The Actuating Motor 741 is designed to operate any of the tekmar 3-way and 4-way brass mixing valves from type 710 through to type 724. The 741 provides 6 N=m (53 in=lbs) of torque over a 90¼ rotation. The actuating motor rotates its output shaft whenever 24 V (ac) is applied between either the counter clockwise or clockwise terminals and the Com terminal. The motor is compatible with any control having a 24 V (ac) floating output.
Specifications:
Specifications:
- Literature + D 741
- Packaged Weight + 1.2 lb. (520 g)
- Approvals + CSA C US
- Ambient Conditions + Indoor use only, 32 to 122¼F (0 to 50¼C), RH ≤ to 80% to 88¼F (31¼C), down to 50% from 104 to 122¼F (40 to 50¼C), Altitude <2000 m, Installation Category II, Pollution Category 2
- Power Supply + 24 V (ac), 60 Hz
- Control Signal + 24 V (ac), floating action, 1.8 VA
- Angle of Rotation + Electrically limited to 90¼ shaft rotation.
- Running time + 105 seconds at 60 Hz
- Maximum torque + 6 N=m (53 in=lbs)
Specs
–
| Ambient Conditions: | Indoor Use Only 32 to 122°F (0 to 50°C), RH < 80% to 88°F |
|---|---|
| Material: | Brass |
| Power Supply: | 24 VAC, 50/60 Hz |
| Application: | Heating |
| Control Signal: | 24 V (ac), floating action, 1.8 VA |
| Rotation: | Electrically limited to 90° shaft rotation |
| Running Time: | 105 seconds at 60 Hz |
| Type: | Actuator |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
👍
Valve was correct and came in a timely manner.
Rob
Fbks
5 years ago
Verified Buyer
Was this review helpful to you?
Used this to replace a failed ESBE 4 way mixing valve
Easy to wire into the old system.
Pitman44
Upstate NY
7 years ago
Verified Buyer
Was this review helpful to you?
Easy install
The ease of working with Supplyhouse.com is a pleasure, and when they say specify a date to receive, they work to achieve that. The part arrived quickly, was 1/3 the size of the noisy one it replaced. It's working well and we're pleased by it.
Log Home Builder
monroe, wa
11 years ago
Verified Buyer
Was this review helpful to you?
powerhouse
This product was great. We had an apartment building with 6 zones of hot water heat. One Of the mixing valves went down at about 1 pm. Every vendor we called could not get the valve for about 2 to 3 weeks. I went to your site and had it the next day at my office in less than 24 hours with free shipping! This product is easy and fast to install. It can be used in residential to commercial applications. This application was on a 3" hot water zone. Heat was restored and the job was done. I would recommend this product to anyone, as well as your company
Thanks again for your fast and reliable service,
Christopher J . Krull
President
Charles Krull & Son Inc.
Established 1910
Chris
Malverne, N.Y.
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: Will this work with an ISTA outdoor reset control?
Asked by gary 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe 741 is a floating action motor, the signal required to run it is a 24 V (ac) to power open and a 24 V (ac) signal to power it closed, the Tekmar Mixing Control 360 would be a better recommendation as a basic level entry unit.
Was this review helpful to you?
Q: I am looking for a 1 1/4" 4 way valve and controller for a hydronic system. The valve/controller needs to be 24V. to open and self closing. The valve/controller I am replacing is an "AutoMix II" and operating with a Tarm Boiler.
Asked by Rick Schleppi 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe would recommend that you use a Tekmar 722 valve with this controller.
Was this review helpful to you?
Q: I have the Tekmar #712 3 Way Mixing Valve. Would this Actuating Motor be use with an Outdoor Reset Control such as the Tekmar #256?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it can be.
Was this review helpful to you?
Q: will this work on a Danfoss ESBE 3/4 in 4 way mixing valve with a Tekmar 153 set point control
Asked by Radiantyeti 16 years ago
Add your answer
Verified Reply- PexSupply StaffThis motor is designed only for Tekmar valves and should not be used on a Danfoss valve.
