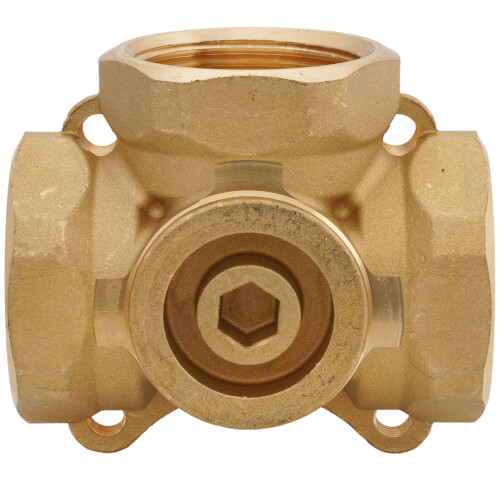

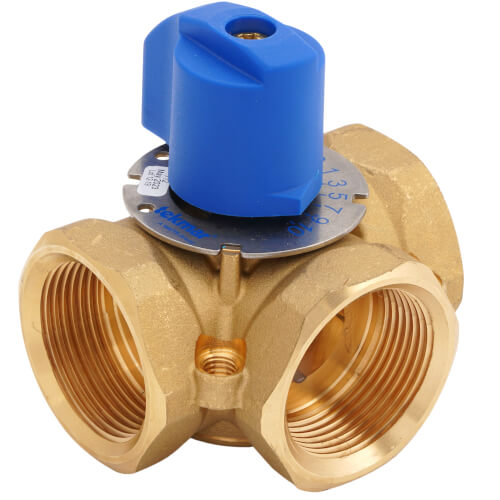

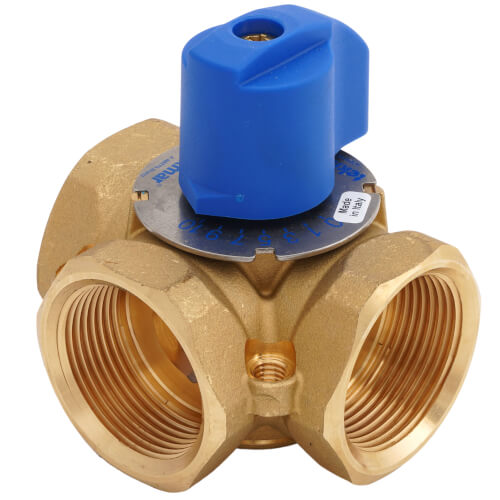

1-1/4" Brass 3-Way Mixing Valve
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$176.31 each
In Stock
Get 2 Fri, Sep 29
More Available
Order by 5PM, receive Friday
MANUALS (2)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1-1/4"
248°F Max Temp
20°F Min Temp
20°F - 248°F
Brass
Description
–
The 3-Way Brass Mixing Valve 712 is used to mix supply water from a hydronic source with water returning from a system. It is designed for use in either closed loop or open loop hydronic systems. This 3-way valve has standard female NPT threads, as well as a maximum leak through rate of 1 percent to allow for water expansion during temperature changes. The valve position can be manually set using the handle. An Actuating Motor 741 can be used to automatically operate the valve.
Product Features
Product Features
- Brass construction to resist corrosion
- The valve position can be manually set using the handle
- 3-Way mixing valve
- 1-1/4 inch connection size
Specs
–
| Application: | Point of Source Heating |
|---|---|
| Size: | 1-1/4" |
| Material: | Brass |
| Max Pressure (PSI): | 146 |
| Max Temp (F): | 248°F |
| Min Temp (F): | 20°F |
| Temperature Range (F): | 20°F - 248°F |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Body Pattern: | 3-Way |
