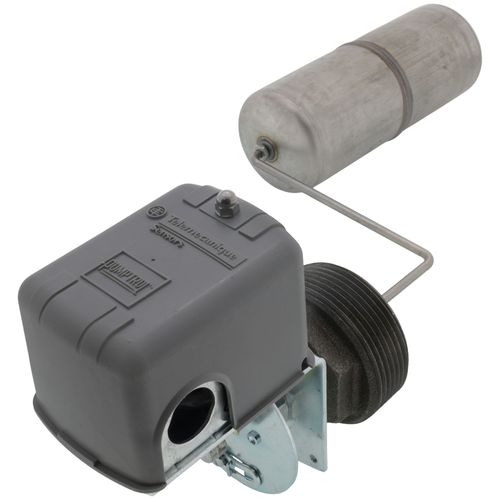

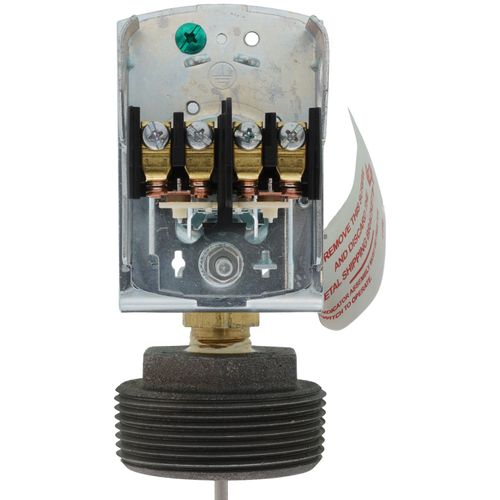

Liquid Level Switch w/ Bushing, Reverse Lever, Open On Rise, NEMA 1, Left Float Position (600V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$203.03 each
In Stock
Get 7 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Open on Rise
50 MAX PSI
10 Amps
Steel
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
- Features: Reverse Action
- Includes: Reverse Action - Road and float
- Float Material: Stainless Steel
- Electrical Connections: Screw Clamp
- Stem Material: Stainless Steel
- HP @ 1 Phase - 120V: 2
- Contact Form: DPST
- Max. Voltage: 600
- Max. Current: 600A
- Tank Connection Size: 2-1/2" MNPT
- Float Length: 7.13"
- HP @ 3 Phase - 240V: 5
- Max. Pressure: 50 psi
- Operating Temp. Range: -22 Degrees to 220 Degrees F
- Item: Tank Liquid Level Switch
- HP @ 1 Phase - 240V: 3
- Float Dia.: 2.58"
- Overall Length: 16.06"
- NEMA Rating: 1
- Body Material: Steel
- Width: 11.3"
- Standards: UL, CSA
- Includes: Rod and Float
- Float Travel: 6-1/4"
- Height: 5.98"
- Conduit Size: 3-1/2"
- Stem Length: 5.07"
- Float Rod Angle: 90 Degrees
- Float Position: Left
- Switch Function: Open On Rise
Specs
–
| Switch Action: | Open on Rise |
|---|---|
| Max Voltage: | 600V |
| NEMA Rating: | 1 |
| Max Pressure (PSI): | 50 |
| Current (amps): | 600A |
| Poles: | 2 |
| Amperage: | 10 |
| Material: | Steel |
| Float Travel: | 4-1/2" |
| Tank Connection: | 2-1/2" MNPT |
| Features: | Reverse Action |
| Application: | Liquid Flow |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
0%
3 star
50%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
If I had better options I wouldn't buy these things
This is an ongoing replacement. Contacts usually fail before the float sleeve gets sticky, but this time the float quit going up or down. Not because water got in the float. Because the sleeve the floats is carried by got resistive.
Dog
Ramona, CA
12 months ago
Verified Buyer
Was this review helpful to you?
Great Product at a Great price!
This is one of the main float switch assemblies that we stock here at our business. It is great to have a vendor that not only has them at a great price, but also typically has them in stock and ships out fast. The items have never arrived in bad condition as Supply House does a good job of packaging their materials for shipments. If you need parts for the HVAC business, This is where you want o go!
Speedy
Kansas City
2 years ago
Verified Buyer
Was this review helpful to you?
