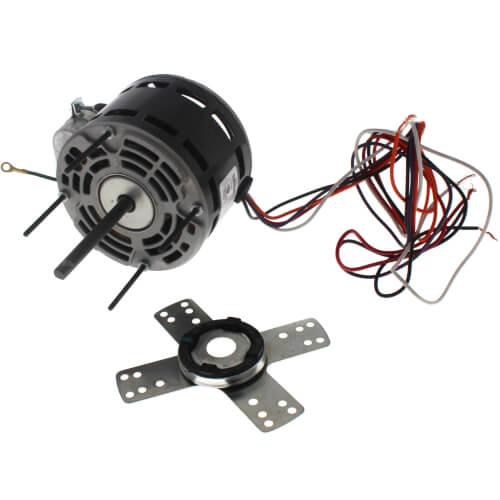

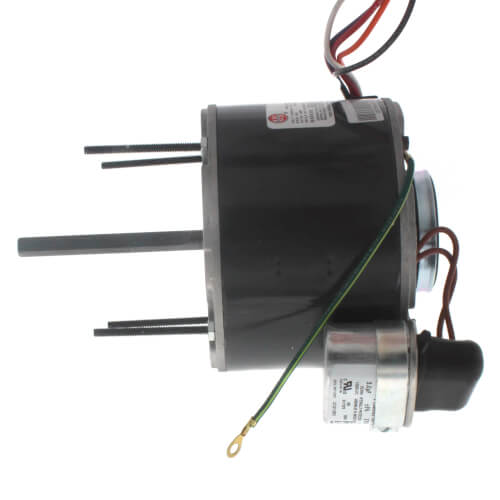

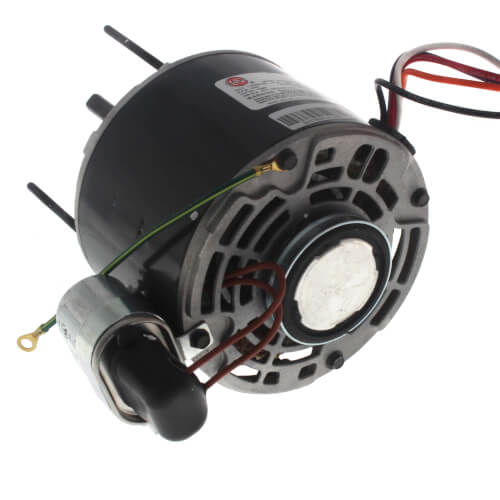

5" Shaded Pole 21/29 Frame Replacement Motor (115/208-230V, 1/15 HP 1550 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$222.73 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/208-230v
1550 RPM
CCWLE
1/15 HP
1.3 Amps
Description
–
Designed to meet manufacturer's requirements for direct drive fans & blowers.
- Four motors replace most original 21 frame GE motors
- P in catalog number indicated permanent split capacitor, capacitor included
- Self aligning bearings
- Holes provided for attaching a BX connector
- Resilient hub rings, 2-1/4" diameter
- 30" Leads
- Dual voltage easily changed by quick connects
- Class B insulation
- 3/8" diameter shafts with 1/2" adapters
- Extended thru-bolts
- Automatic reset thermal overload protector
- Mounting bracket provided at shaft end
- Can be moved on extended-thru bolts to fit most existing bases
- Has mounting holes and bolts to match 21 frame bolt circle for stud mounting
- Can be resilient mounted, band mounted, or end mounted
Specs
–
| Type: | Shaded Pole |
|---|---|
| Voltage: | 115/208-230v |
| Horse Power: | 1/15 |
| RPM: | 1550 |
| Phase: | 1 |
| Amperage: | 1.3 |
| Enclosure Type: | Open Air Over Open Drip Proof |
| Rotation: | CCWLE |
| Shaft Diameter: | 3/8" |
| Shaft Length: | 3-1/2" |
